AC90
Metal Clad Armored Cable, 600V; RW90 Insulation, Armored, Multi-conductor, Copper or Aluminum
Standard :
• CSA C22.2 No. 51 – Armoured Cables
Category :
Wires & Cables
Tags :
600V, Aluminum, Armored, Copper, Multi-conductor, RW90 Insulation
Application :
• For open and concealed wiring in dry locations only.
• For use in cable troughs and ventilated flexible cableways in dry locations only.
• Minimum recommended installation temperature minus 40°C (with suitable handling procedures).
• Maximum conductor temperature 90°C.
• Approved for use with ceiling fixtures.
• Armoured cable for commercial, industrial and apartment use.
Structure :
• Conductor : Copper conductor with Copper grounding wire 14AWG to 2AWG or aluminium alloy 8000 series ACM with AL groundig wire 6AWG to 750MCM.
• Insulation : Cross-linked polyethylene insulation (RW90 XLPE).
• Assemble wrap : Conductor assembly paper wrapped.
• Armored : Interlocked aluminum armour.
• Number of conductor : Two, three or four core round laid.
Standard :
• CSA C22.2 No. 51 – Armoured Cables
Performance :
• FT4 Flame retardant.
• Lead free and ROHS compliant.
Details
| Material : | Aluminum, Copper |
|---|---|
| Voltage : | 600 V |
| Working Temprature : | 90ºC Max |
| Tags : | 600V, Aluminum, Armored, Copper, Multi-conductor, RW90 Insulation |
Specification

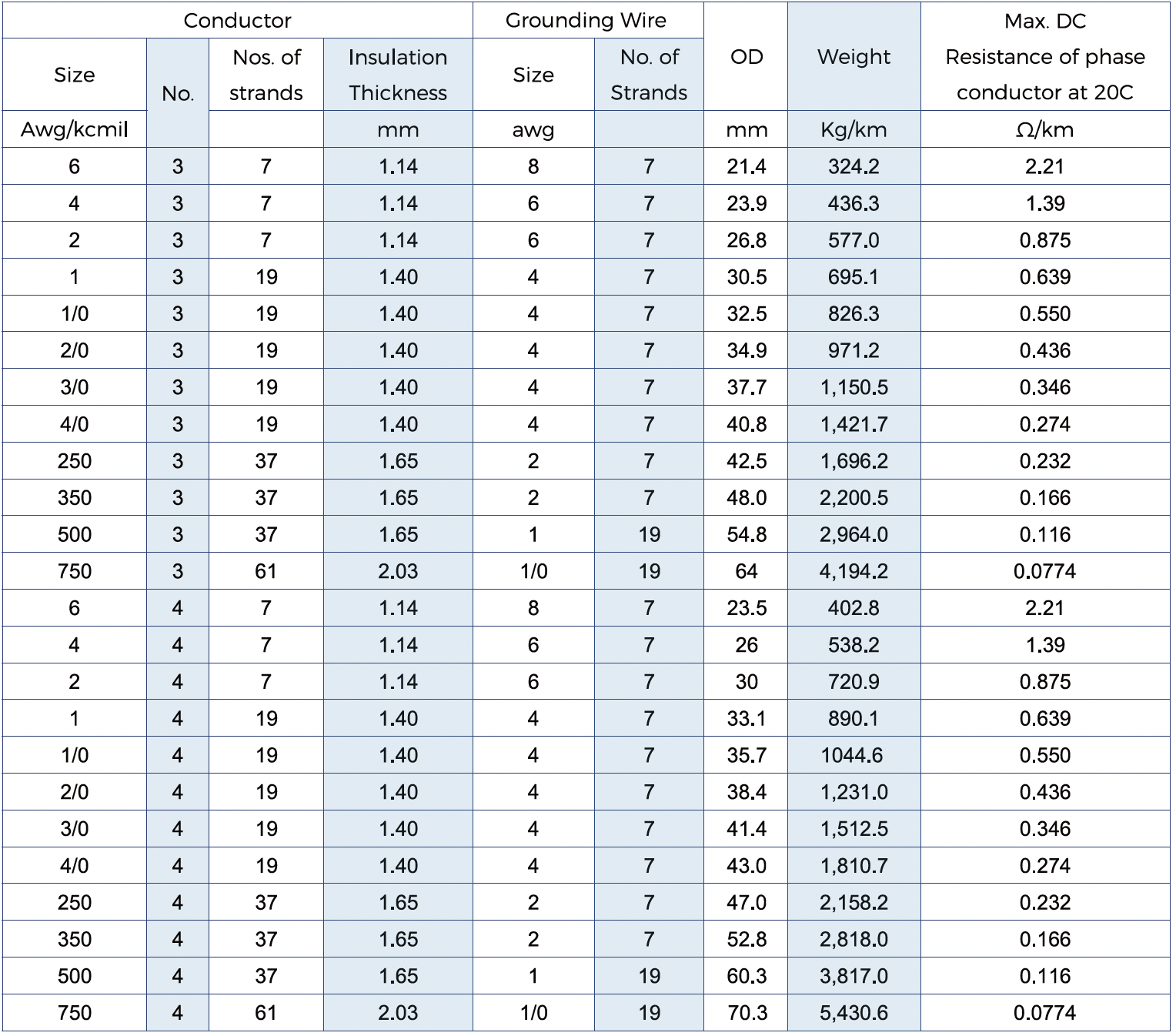

Aluminium conductor with sizes series in 3, 4 core, other sizes also available :

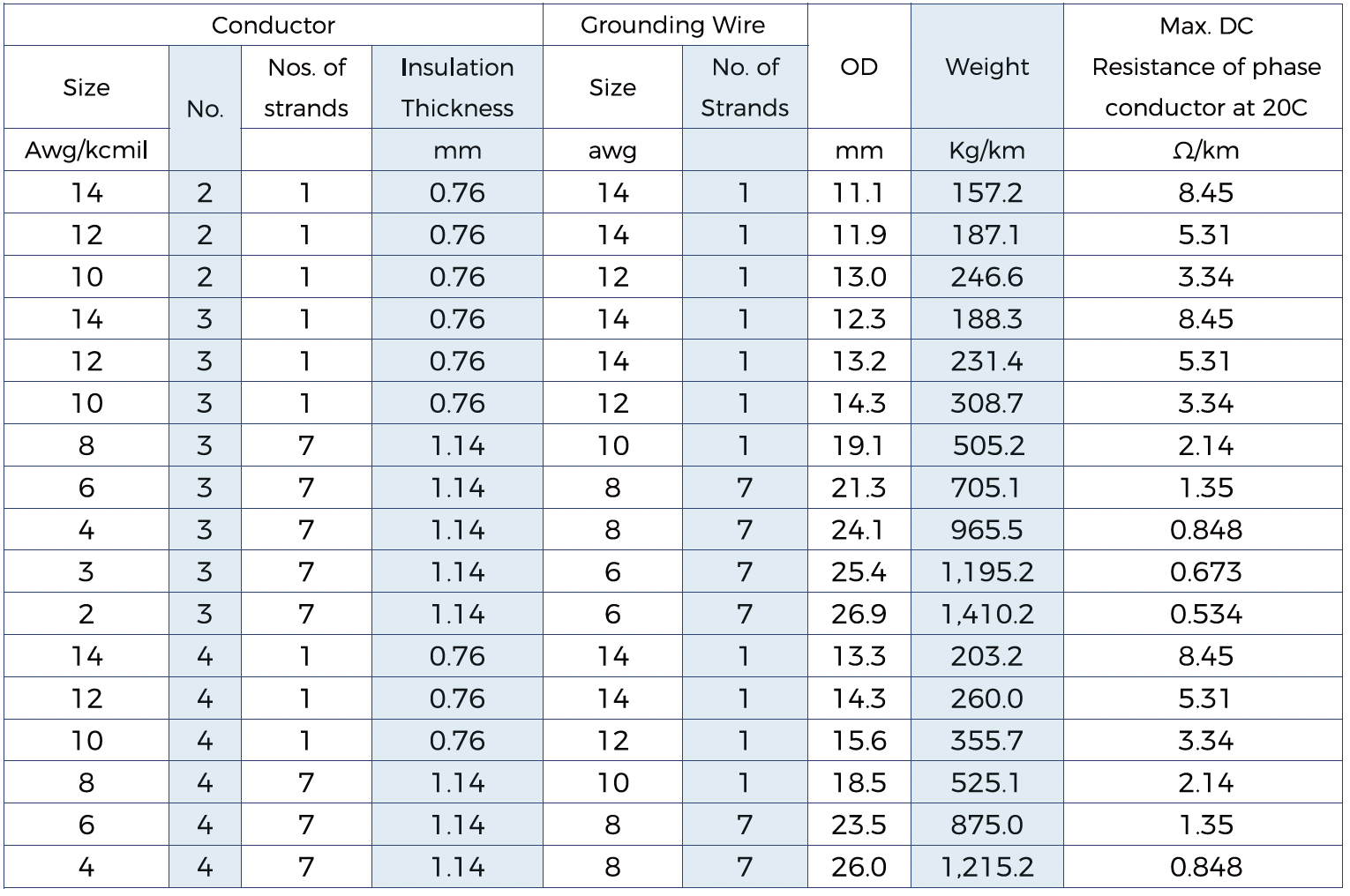

Copper conductor with sizes series in 2, 3, 4 core, other sizes also available :
