Products Detail
TW/TW75/TWU/TWU75
Thermoplastic-Insulated Wire, 600V; PVC Insulation, Single Conductor, Copper or Aluminum
Standard :
• CSA C22.2 No. 75-14 – Thermoplastic-Insulated Wires and Cables.
• UL 83 – Thermoplastic-Insulated Wires and Cables.
• Working temperature:
60°C wet or dry for TW/TWU
75°C wet or dry for TW75/TWU75
Category :
Wires & Cables
Tags :
600V, Aluminum, Copper, PVC Insulation, Single Conductor
Application :
• Suitable for use in conduit or other recognized raceways for services, feeders, and branch circuit wiring.
• Applications include general purpose grounding for power and distribution circuits in resi- dential, industrial, and commercial buildings.
Structure :
• Conductor : Annealed solid or stranded copper,aluminum optional.
• Insulation : PVC, color can be black, red, blue, green, white, purple, orange, etc.
Standard :
• CSA C22.2 No. 75-14 – Thermoplastic-Insulated Wires and Cables.
• UL 83 – Thermoplastic-Insulated Wires and Cables.
• Working temperature:
60°C wet or dry for TW/TWU
75°C wet or dry for TW75/TWU75
Details
| Material : | Aluminum, Copper |
|---|---|
| Voltage : | 600 V |
| Working Temprature : | 75ºC Max |
| Tags : | 600V, Aluminum, Copper, PVC Insulation, Single Conductor |
Specification

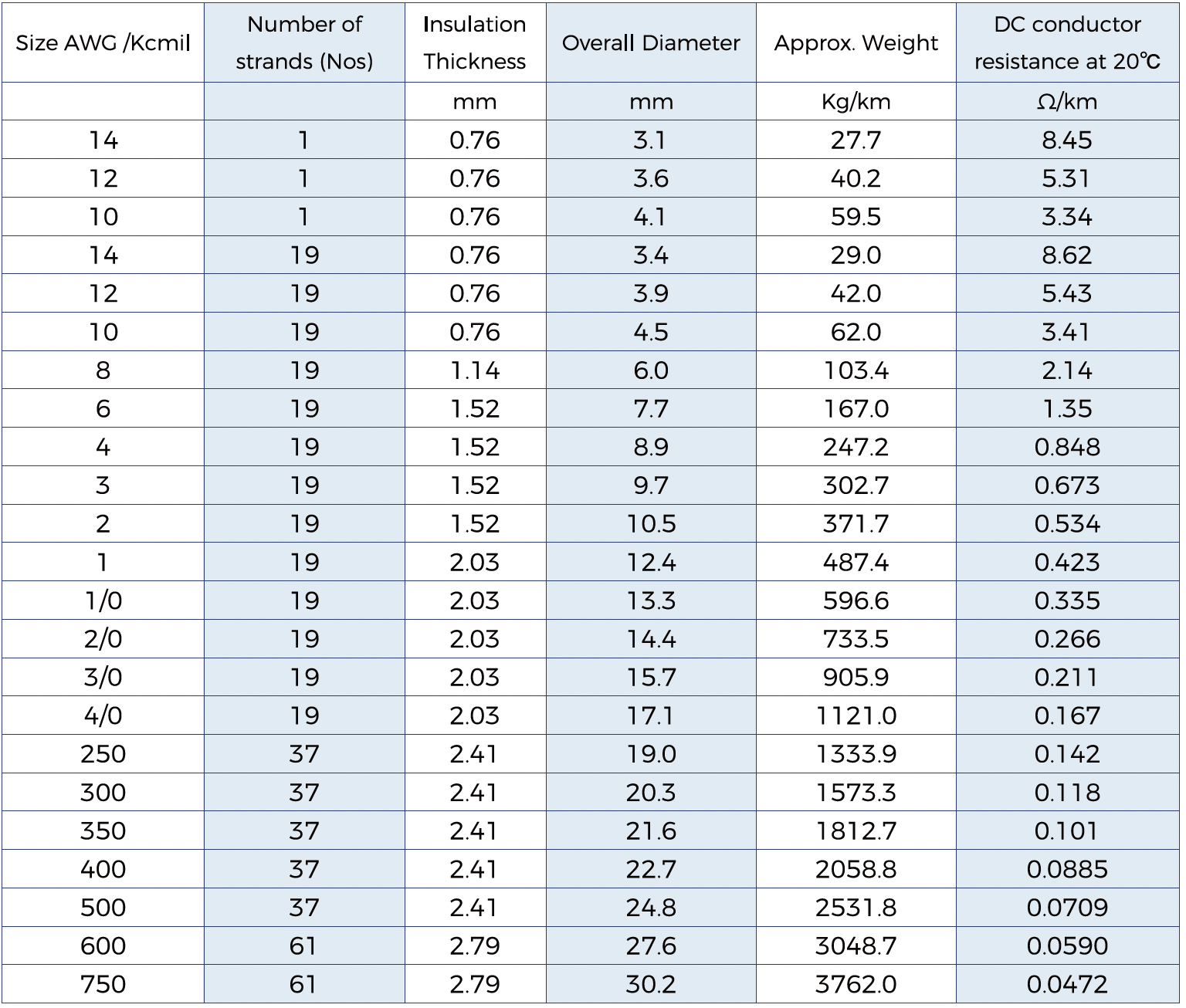

TW/TW75 :

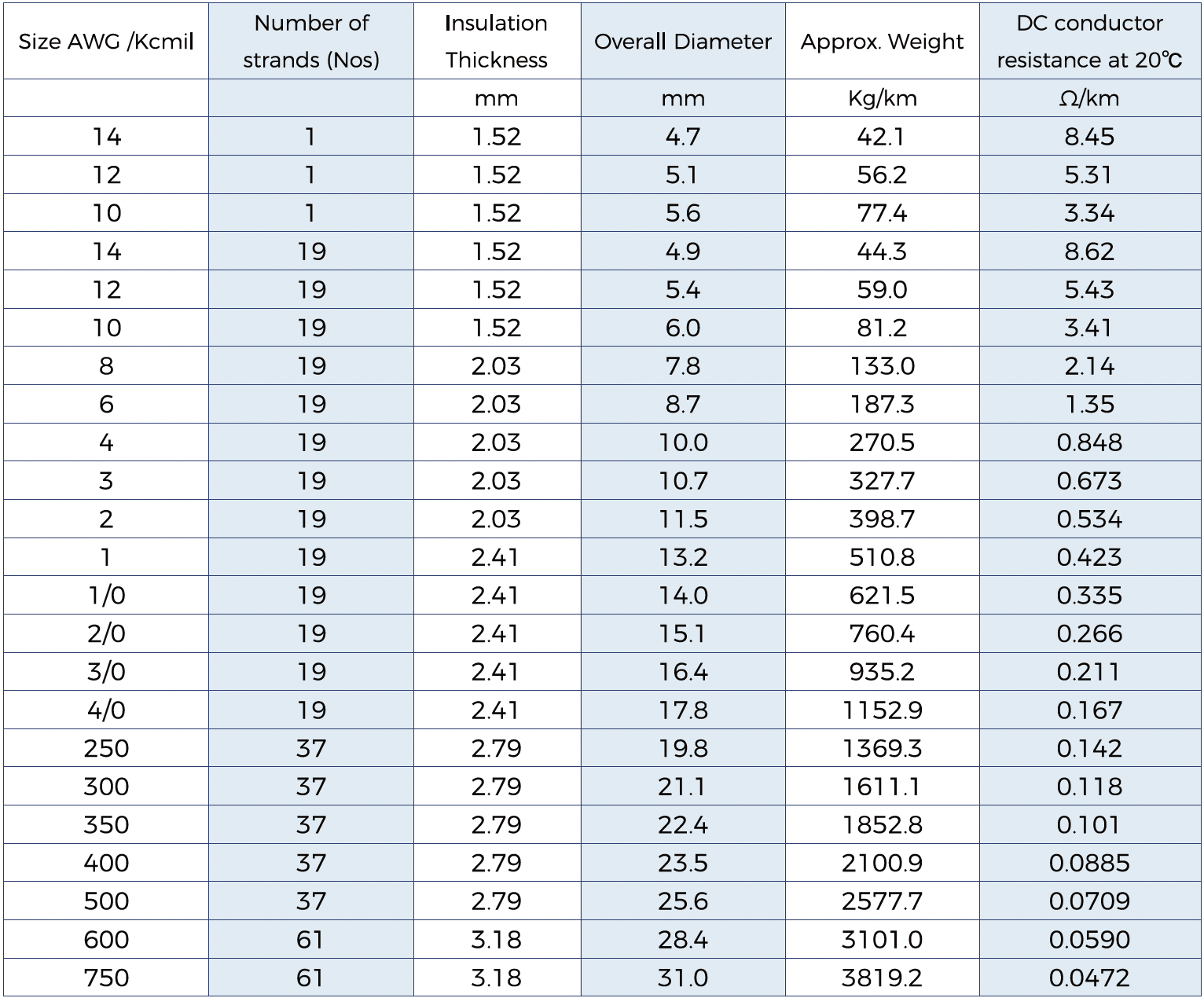

TWU/TWU75 :
