T90 Nylon/TWN75
Thermoplastic-Insulated Wire, 600V; PVC Insulation, Nylon Jacket, Single Conductor, Copper or Aluminum
Standard :
• CSA C22.2 No. 75-14 – Thermoplastic-Insulated Wires and Cables.
• UL 83 – Thermoplastic-Insulated Wires and Cables.
Category :
Wires & Cables
Tags :
600V, Aluminum, Copper, Nylon Jacket, PVC Insulation, Single Conductor
Application :
• General purpose building wire for installation as exposed or concealed wiring and in raceways (except cable troughs) in dry or damp locations.
• Approved for use with ceiling fixtures.
Structure :
• Conductor : Annealed solid or stranded copper,aluminum optional.
• Insulation : PVC, color can be black, red, blue, green, white, orange etc.
• Jacket : Nylon
Standard :
• CSA C22.2 No. 75-14 – Thermoplastic-Insulated Wires and Cables.
• UL 83 – Thermoplastic-Insulated Wires and Cables.
Performance :
• FT-1 Flame retardant.
• Oil Res.
Details
| Material : | Aluminum, Copper |
|---|---|
| Voltage : | 600 V |
| Working Temprature : | 90ºC Max |
| Tags : | 600V, Aluminum, Copper, Nylon Jacket, PVC Insulation, Single Conductor |

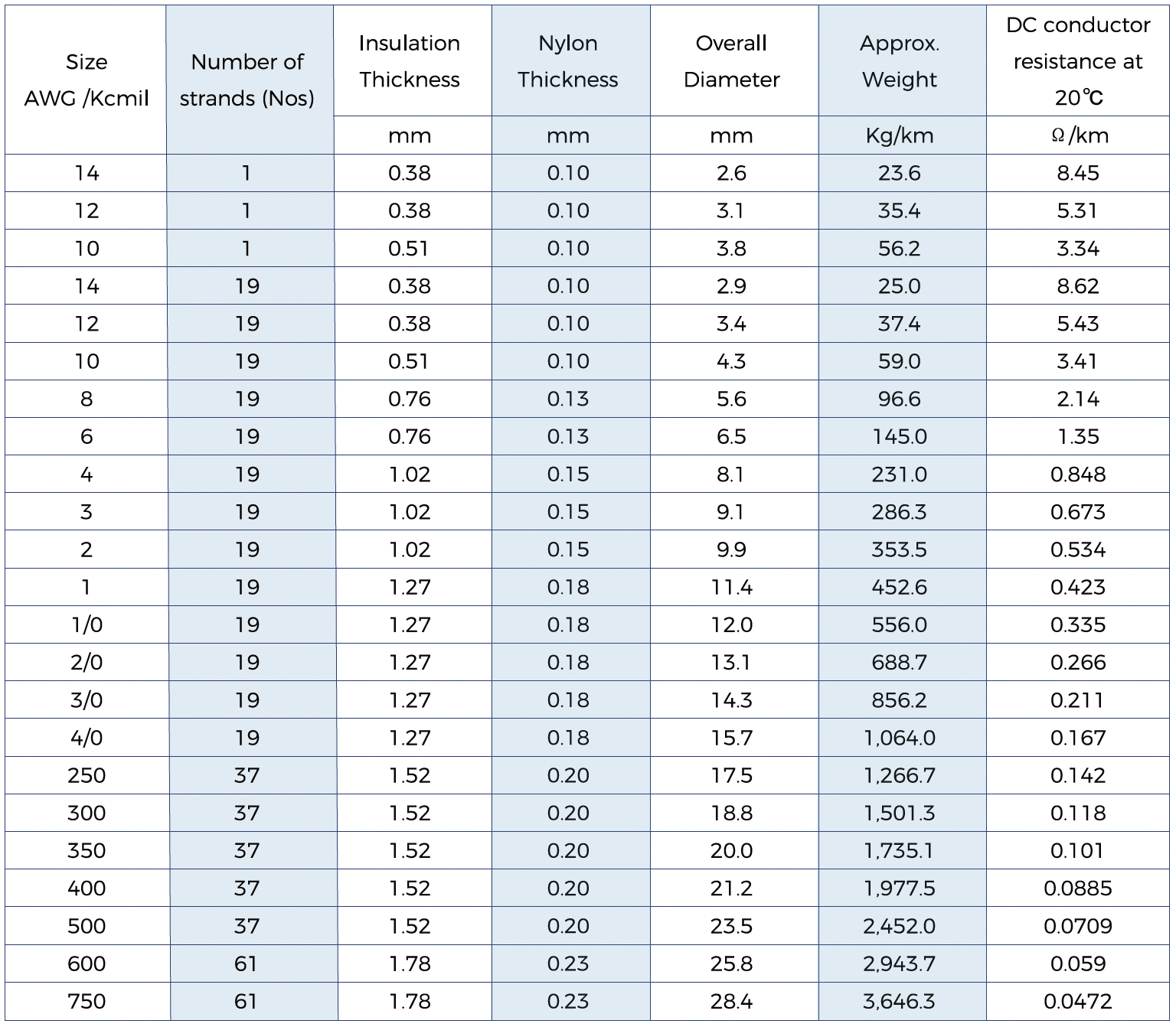

Specification
