Products Detail
RW90/RWU90 Wire
Thermoset-Insulated Wire, 600V; XLPE Insulation, Single Conductor, Copper or Aluminum
Standard :
• CSA Standard C22.2 No.38（Thermoset-Insulated Wires and Cables）.
Category :
Wires & Cables
Tags :
Aluminum, Copper, Single Conductor, XLPE Insulation
Application :
• For open wiring and raceways(except cable throughs and ventilated flexible cableway) in dry or wet locations.
• For exposed wiring where exposed to weather with sunlight resistant insulation. Approved for use with ceiling fixtures.
Structure :
• Conductor : Annealed bare copper wires or compact aluminum 8000 series wires.
• Insulation : Cross-Linked Polyethylene (XLPE).
Standard :
• CSA Standard C22.2 No.38（Thermoset-Insulated Wires and Cables）.
Performance :
• Sun Res(SR), Cold(-40C).
Details
| Material : | Aluminum, Copper |
|---|---|
| Voltage : | 1000 V, 600V |
| Working Temprature : | -40ºC Min , 90ºC Max |
| Tags : | Aluminum, Copper, Single Conductor, XLPE Insulation |
Specification

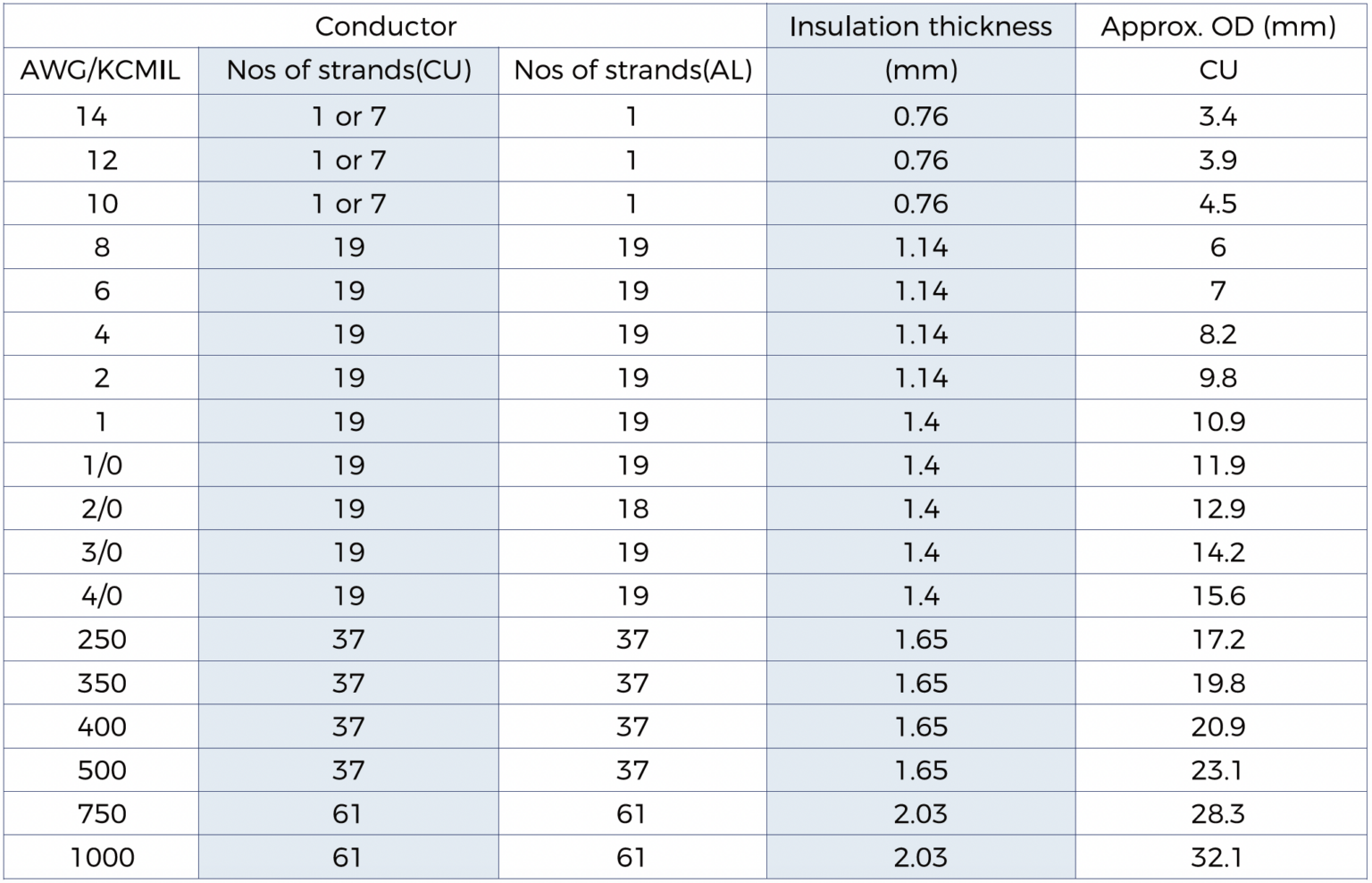

RW90 600V :

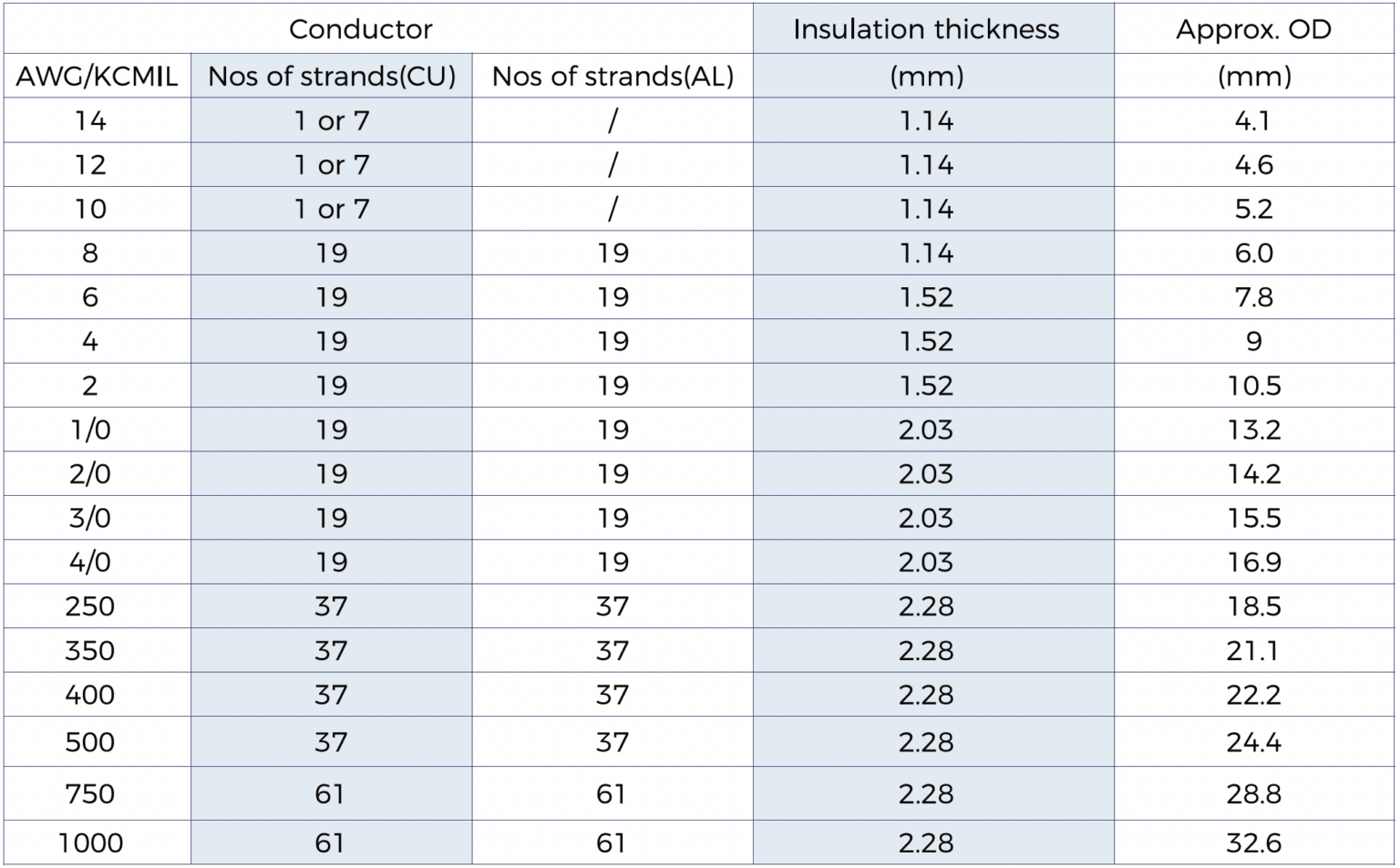

RW90 1000V :
