RPVU90 RPV90
Photovoltaic Cable, 600V or 1000V or 2000V. XLPE Insulation, Single Conductor, Copper or Aluminum.
Standard :
• CSA 2 No. 38 – Thermoset-insulated Wires And Cables.
• CSA 2 No. 271-11 – Photovoltaic Cables.
• ASTM B3, B8, B787.
Category :
Wires & Cables
Tags :
Photovoltaic Cable, Single Conductor, XLPE Insulation
Application :
• RPVU90/RPV90 cables may be installed indoors or outdoors, in raceways and conduits, both above and below ground, and may be direct buried.
• RPVU90 can be used in direct burial installations. It must comply with CE Code Rules 12-012 and 4-004. They are 90ºC, 2 kV rated, and suitable for use in a photovoltaic system.
• Type RPVU90 cable is for use on the DC and AC side of a photovoltaic system, suitable for installation in both wet and dry locations, and may be exposed to sunlight.
• Type RPV90 cable is for use on the DC and AC side of a photovoltaic system, suitable for installation in dry locations, and may be exposed to sunlight.
• RPVU90/RPV90 cables are RoHS Compliant.
Structure :
• Conductor : Stranded AA-8000 aluminum conductor size 6 AWG to 1000 kcmil, or Solid or stranded copper conductor size 14 AWG to 1000 kcmil.
• Insulation : Heat and moisture resistant, low temperature Cross-Linked Polyethylene (XLPE)
Standard :
• CSA 2 No. 38 – Thermoset-insulated Wires And Cables.
• CSA 2 No. 271-11 – Photovoltaic Cables.
• ASTM B3, B8, B787.
Performance :
• Deformation-resistant at high temperatures.
• Excellent moisture resistance, exceeds UL 44.
• Stable electrical properties over a broad temperature range.
• Increased flexibility.
• Resistant to crush and compression cuts.
• UV/sunlight-resistant.
Details
| Material : | Aluminum, Copper |
|---|---|
| Voltage : | 1000 V, 2000V, 600V |
| Working Temprature : | -40ºC Min , 90ºC Max |
| Tags : | Photovoltaic Cable, Single Conductor, XLPE Insulation |
Specification
1000V/2000V RPVU90 Copper Conductor / Aluminum AA8000 Conductor :

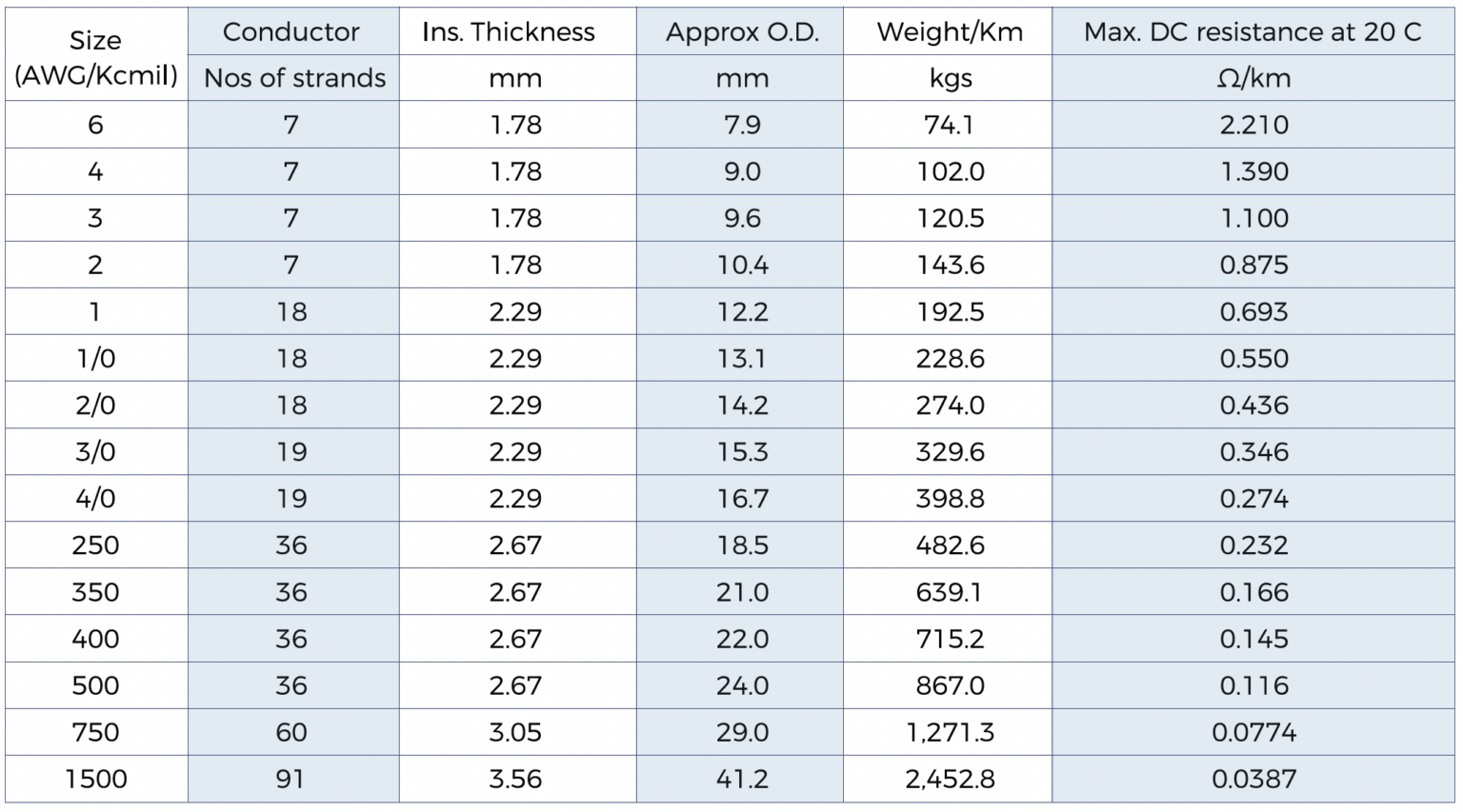

2000V RPV90 Aluminum AA8000 Conductor :
