Products Detail
Type Diesel Locomotive Cable
Standard :
• UL2806
Category :
Wires & Cables
Tags :
2000V, 600V, Copper, CPE Jacket, EPR Insulation, Single Conductor
Application :
• Type DLO is especially suited to supply power to traction motors of diesel-electric locomotives. It is also recommended as a portable cable for drilling rigs, on-shore or off-shore, railroad and transit car wiring, electric earth-moving equipment, in shipyard applications, arc welder supply leads, power and control jumper cable, and motor leads. The cable is suitable for use in wet or dry areas, conduits, ducts, troughs or trays, and where superior electrical properties are desired. The maximum continuous conductor temperature for normal operation is 90°C in wet or dry locations. DLO resists oils, acids, alkalines, heat, flame, and has abrasion resistance.
Structure :
• Conductor : Stranded Tinned copper.
• Insulation : EPR insulated.
• Jacket : CPE sheathed.
Standard :
• UL2806
Performance :
• RoHS Compliant.
• UL listed as Type RHH-RHW-2 per UL 44.
• Meets FT-4 / IEEE 1202 and VW-1 Flame Tests.
• Oil Resistant / Sunlight Resistant / -40 ℃.
• Voltage：2000V or 600V.
• Working temperature: -40°C – 90°C.
Details
| Material : | Copper |
|---|---|
| Voltage : | 2000 V, 600V |
| Working Temprature : | -40ºC Min , 90ºC Max |
| Tags : | 2000V, 600V, Copper, CPE Jacket, EPR Insulation, Single Conductor |
Specification

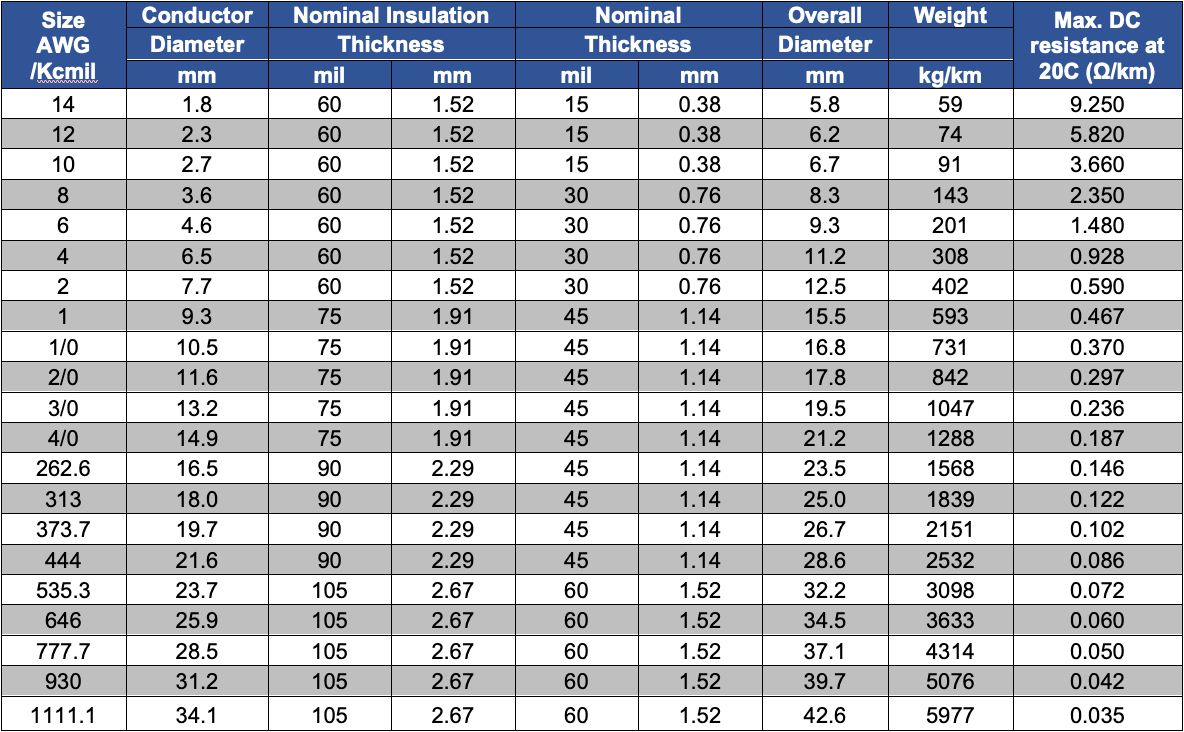

Technical data 2 KV :

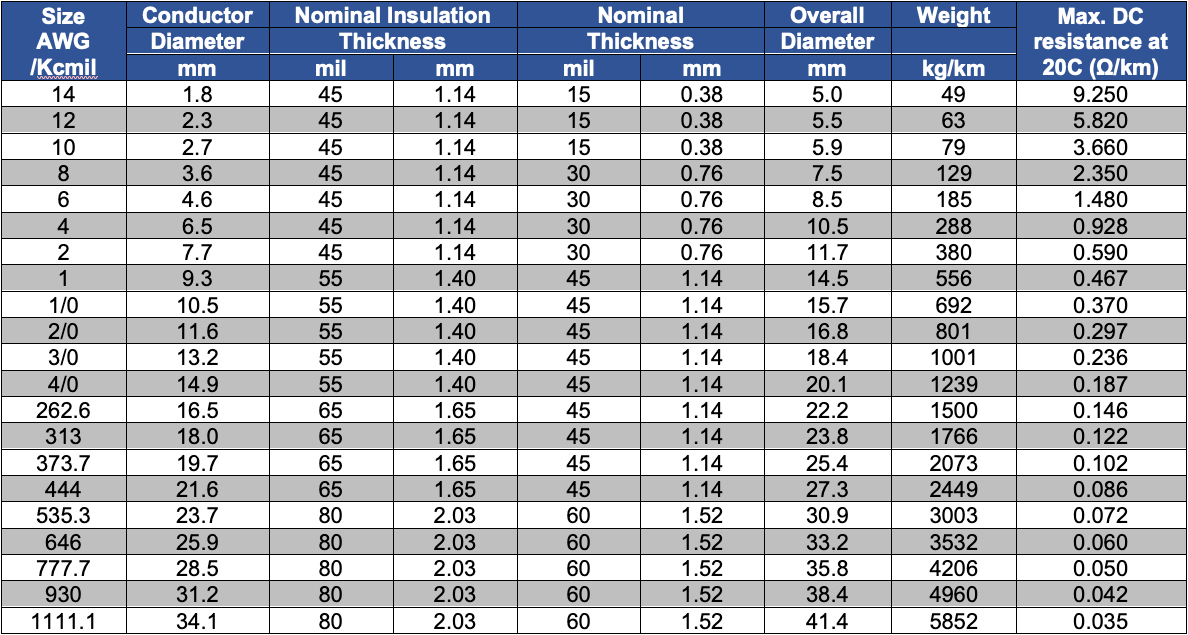

Technical data 600V :
