Products Detail
Telecommunication Central Office Power Cable
Type 4923XX and 4923XX/0
Standard :
• UL2731, Telecommunication Central Office Power, Battery, and Distribution Cables.
• IEC60228, Conductors of insulated cables.
Category :
Wires & Cables
Tags :
600V
Application :
• The cables are used for power supply of telecom equipment, where there are requirements for flame retardant, low smoke, and halogen free performance. Grey outer-sheath (without “/0” in the code) for indoor use. Black outer sheath (with “/0” in the code) is sunlight resistant, UV stabilized, for outdoor use.
Structure :
• Conductor : Tinned copper wire conductor, class 5.
• Insulation : Low smoke halogen free polyolefin insulation.
• Shield : AL/PET foil together with annealed tinned copper wires, braid or helically applied with alternating direction (SZ).
• Sheath : Flame retardant Low smoke halogen free polyolefin. UV stabilized for outdoor use.
Standard :
• UL2731, Telecommunication Central Office Power, Battery, and Distribution Cables.
• IEC60228, Conductors of insulated cables.
Performance :
• IEC 60332-3 cat C.
• UL 1685, Vertical tray.
• Voltage：600V.
• Working temperature: Max. 90 ℃, dry.
Details
| Material : | Copper |
|---|---|
| Voltage : | 600 V |
| Working Temprature : | 90ºC Max |
| Tags : | 600V |

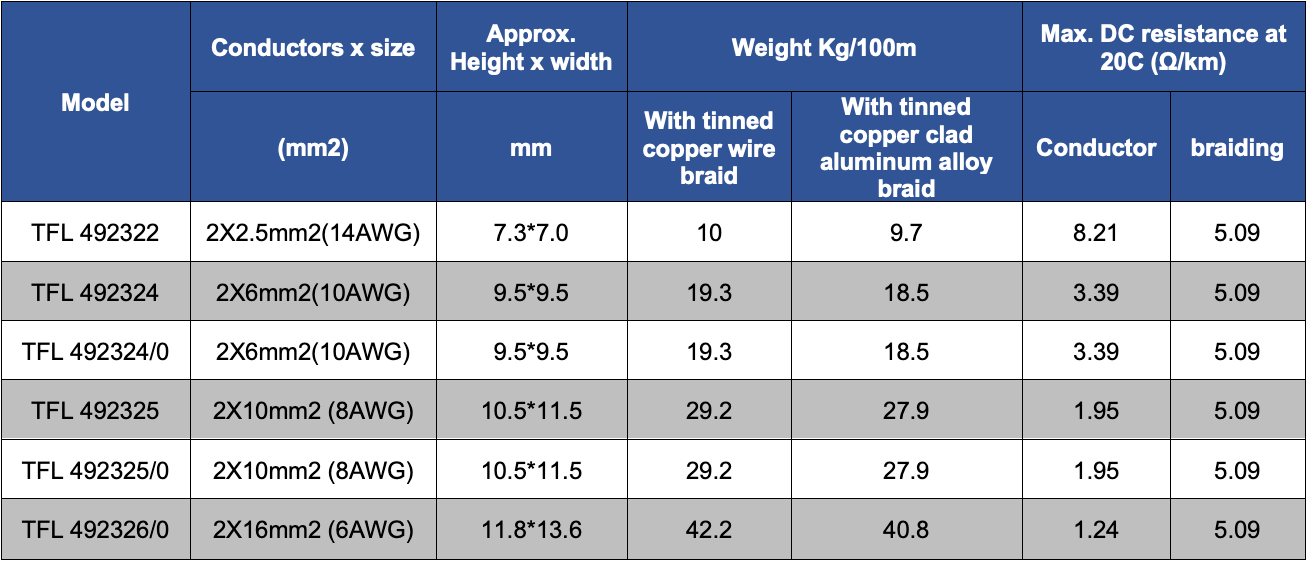

Specification
