NMD90 Aluminum
Non-metallic Sheathed Cable, 300V. T90 Nylon or RW90 Insulation, PVC Jacket, Aluminum, Building Wire
Standard :
• CSA C22.2 No. 48 (non-metallic sheathed cable).
Category :
Wires & Cables
Tags :
XLPE Insulation, PVC Jacket
Application :
• NMD90 cables may be used for both exposed work in dry locations or concealed work in dry or damp locations.
• The maximum allowable conductor temperature is 90°C.
• The minimum recommended installation temperature is -25°C or -40°C for two-conductor cables and -25°C for three-conductor cables (with suitable handling procedures).
• Material should be properly stored above 0°C for 24 hours prior to installation.
Structure :
• Conductor: Aluminum Alloy 8000 series ACM with AL grounding wire.
• Insulation: PVC insulation and nylon covering or Cross-linked Polyethylene (XLPE).
• Insulation color: Black, red and white for 3 conductor.
• Jacket: PVC, Heat and moisture-resistant, flame retardant.
Standard :
• CSA C22.2 No. 48 (non-metallic sheathed cable).
Performance :
• FT-1 Flame retardant.
• Heat and moisture-resistant.
Details
| Material : | Aluminum |
|---|---|
| Voltage : | 300 V |
| Working Temprature : | -40ºC Min , 90ºC Max |
| Tags : | XLPE Insulation, PVC Jacket |

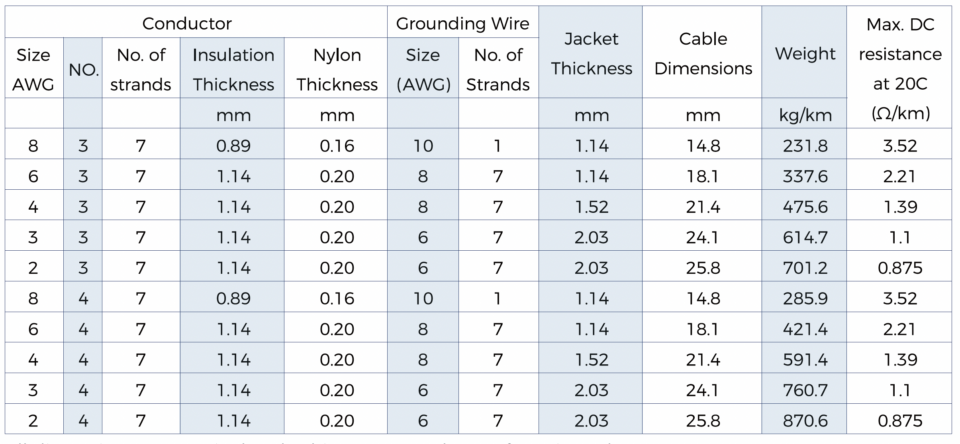

Specification
