Type SHD Mining Cable EPR/CPE 2000 V
Standard :
• ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications.
• Meets flame test requirements and is accepted for listing by MSHA.
Category :
Wires & Cables
Tags :
2000V, Copper, Rubber Insulation
Application :
Designed for use as trailing cables on AC mining equipment:
• Where induced voltages in the grounding system will not produce a hazard.
• On low- and medium-voltage AC circuits where shielding is desired or required.
Structure :
Conductor :
• 2 AWG thru 3/0 AWG coated annealed copper, bunched wires, rope-lay-stranded per ASTM B172.
Insulation :
• Ethylene Propylene Rubber (EPR) insulation.
Insulation Shield :
• A flexible coated copper/textile braid shield is applied over a non-conducting overlapped tape.
Grounding Conductors :
• Coated copper, rope-lay-stranded per ASTM B172.
• Two conductors, shaped and covered with an extruded semi-conducting shield.
Jacket :
• Extra-heavy-duty, lead-cured Chlorinated Polyethylene (CPE).
Standard :
• ICEA S-75-381 Portable and Power Feeder Cables for use in mines and similar applications.
• Meets flame test requirements and is accepted for listing by MSHA.
Performance :
• Flexible for easy handling.
• Excellent heat, moisture, steam, oil, chemical and radiation resistance.
• Resists cutting, impact, abrasion, flame and sunlight.
• Voltage：2000V.
• Working temperature : In dry locations only at temperature not to exceed 90°C.
Details
| Material : | Copper |
|---|---|
| Voltage : | 2000 V |
| Working Temprature : | 90ºC Max |
| Tags : | 2000V, Copper, Rubber Insulation |

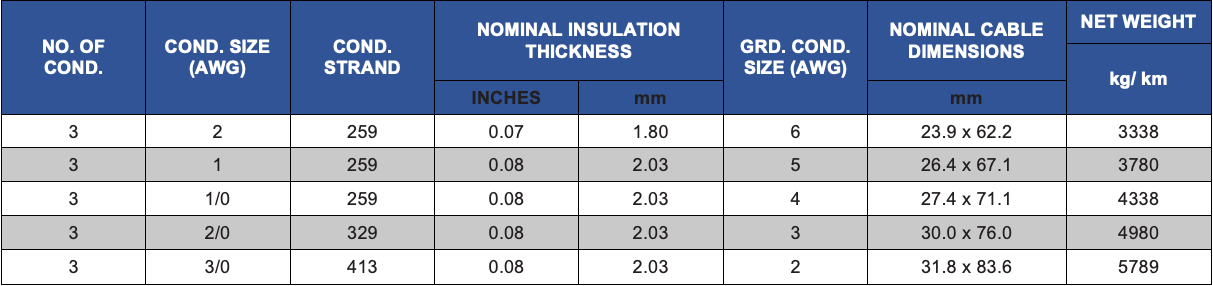

Specification
