Products Detail
Type XHH XHHW XHHW-2
Working temperature : In dry or wet locations at temperature not to exceed 90°C.
Standard :
• UL44
Category :
Wires & Cables
Tags :
600V, Aluminum, XLPE Insulation
Application :
• Type XHH XHHW XHHW-2 Cable consists of aluminum alloy conductor with a specially designed XLPE insulation. It can reduce half pulling force than the regular XHHW-2.Its primarily used in conduit or recognized raceways for services,feeders, and branch circuit wiring as specified in the National Electrical Code.
Structure :
• Conductor :
1. soft plain copper, conforms to ASTM B3, B8.
2. compact soft drawn aluminum alloy,conforms to ASTM-B-800,B-801andB-836.
• Insulation : crosslinked polyethylene (XLPE).
Standard :
• UL44
Performance :
• Abrasion, heat, moisture, and flame Resistant.
• Voltage：600V.
• Working temperature : In dry or wet locations at temperature not to exceed 90°C.
Details
| Material : | Aluminum |
|---|---|
| Voltage : | 600 V |
| Working Temprature : | 90ºC Max |
| Tags : | 600V, Aluminum, XLPE Insulation |
Specification

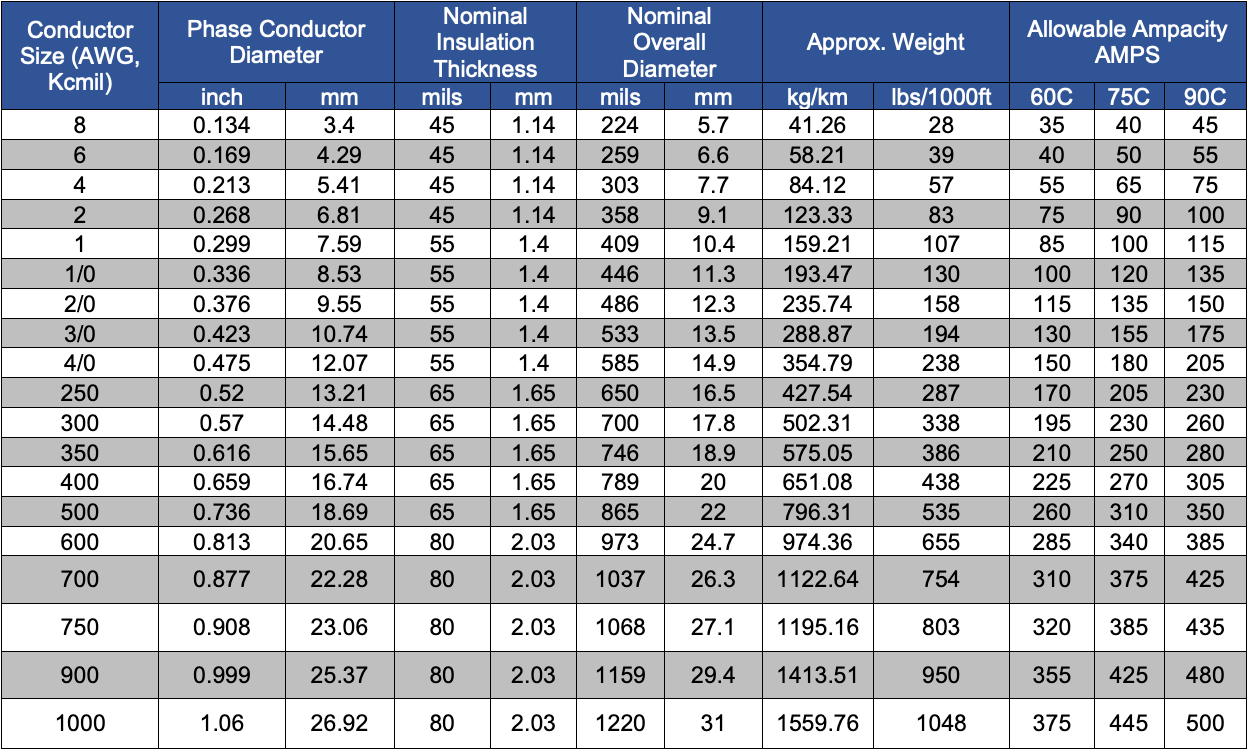

XHHW-2-ALUM :

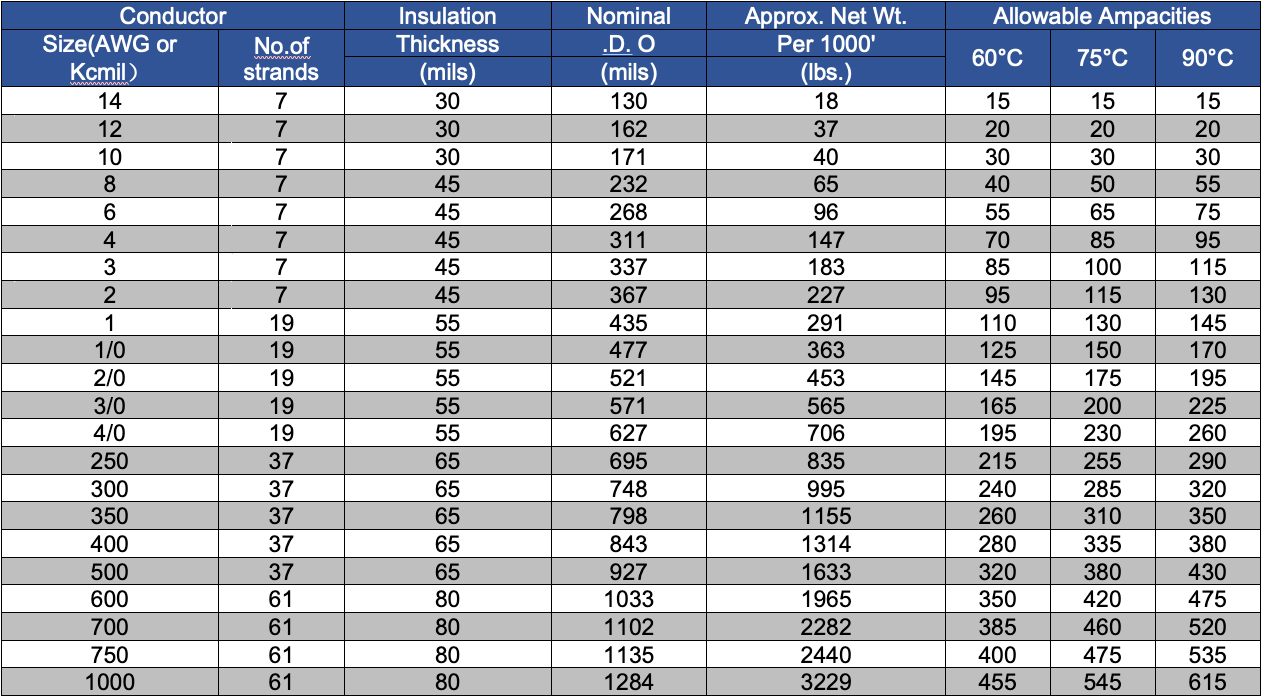

XHHW-2-Copper :
