Products Detail
Type URD Cable 600V
Working temperature : In dry and wet locations at temperature not to exceed 90°C.
Standard :
• ASTMB-230, B-231.
• ASTM B-609, B-901.
• UL Standard 854 requirement for USE-2.
• ICEA S-105-692.
• RoHS environmental conductive requirement
Category :
Wires & Cables
Tags :
600V, Aluminum, XLPE Insulation
Application :
• Type secondary URD cable can be used for secondary distribution and underground service at 600 volts or less, either direct burial or in ducts.
Structure :
• Conductor :
1. B-230 Aluminum 1350-19 Wire for Electrical Purpose.
2. B-231 Aluminum 1350 conductors, concentric-lay-stranded.
3. B-609 Aluminum 1350 Round wire, annealed and intermediate tempers for electrical purpose.
4. B-901 Compressed round stranded aluminum conductors for using single input wire.
• Insulation : Cross-linked polyethylene（XLPE).
Standard :
• ASTMB-230, B-231.
• ASTM B-609, B-901.
• UL Standard 854 requirement for USE-2.
• ICEA S-105-692.
• RoHS environmental conductive requirement
Performance :
• Heat, ozone, oil, and chemical resistant.
• Tear and abrasion resistant.
• Voltage：600V.
• Working temperature : In dry and wet locations at temperature not to exceed 90°C.
Details
| Material : | Aluminum |
|---|---|
| Voltage : | 600 V |
| Working Temprature : | 90ºC Max |
| Tags : | 600V, Aluminum, XLPE Insulation |

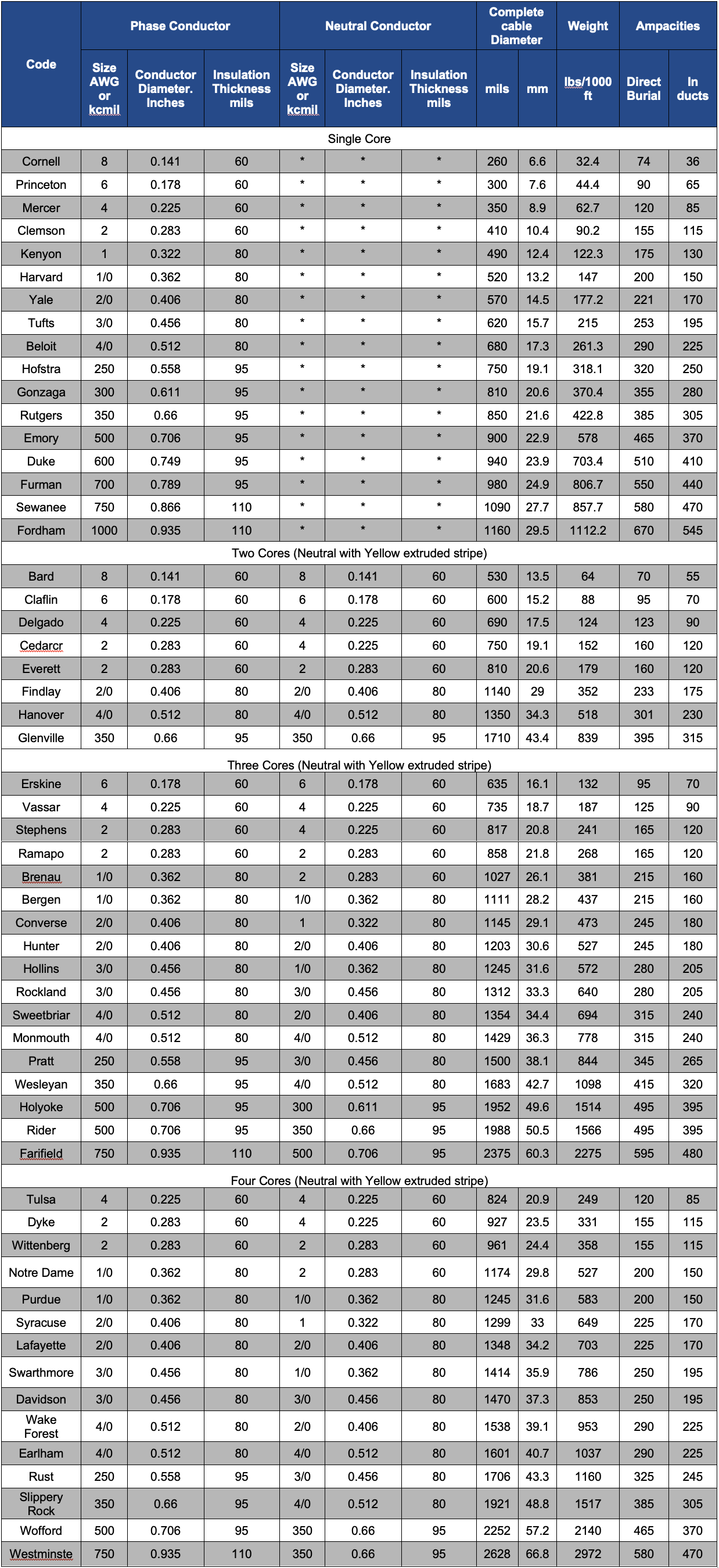

Specification
