Products Detail
Type SE (SEU SER)
Working temperature : In dry and wet locations at temperature not to exceed 90°C.
Standard :
• ASTM-B-800 and B-801.
• UL Standard 44 for XHHW-2.
• UL Standard 854 for SER/SEU.
• RoHS environmental conductive requirement.
Category :
Wires & Cables
Tags :
Aluminum, PVC Jacket, XLPE Insulation
Application :
• Aluminum Service Entrance Cable Type SE, with rated voltage 600V, is used to transmit power from the junction box to the meter base and from the meter base to the distribution cabinet; it may be used in all applications where Type SE cable is permitted. Type SE cable could be used in dry or wet environment at the working temperature does not exceed 90℃.
Structure :
• Conductor : AA-8000 series aluminum alloy according to ASTM- B-800 and B-801.
• Insulation : sunlight resistant Type XHHW-2 insulation (XLPE).
• Wrapping : Style U (SEU): Two insulated conductors surrounded by concentric bare AA-8000 aluminum alloy neutral wires and a reinforcement tape.
• Style R（SER）：Two, three or four insulated conductors and a bare ground conductor cabled together and covered with a reinforced binder tape.
• Jacket : gray sunlight-resistant polyvinyl chloride (PVC).
• Nos of conductor : SER:2+ 1(grounding); 3+ 1(grounding); 4+ 1(grounding); SEU: 2+ 1(Bare Conentric Ground).
Standard :
• ASTM-B-800 and B-801.
• UL Standard 44 for XHHW-2.
• UL Standard 854 for SER/SEU.
• RoHS environmental conductive requirement.
Performance :
• FT2 Flame retardant.
• Abrasion resistance, moisture proof and heat resisting.
• Sunlight resistant.
• Voltage：600V.
• Working temperature: In dry and wet locations at temperature not to exceed 90°C.
Details
| Material : | Aluminum |
|---|---|
| Voltage : | 600 V |
| Working Temprature : | 90ºC Max |
| Tags : | Aluminum, PVC Jacket, XLPE Insulation |
Specification

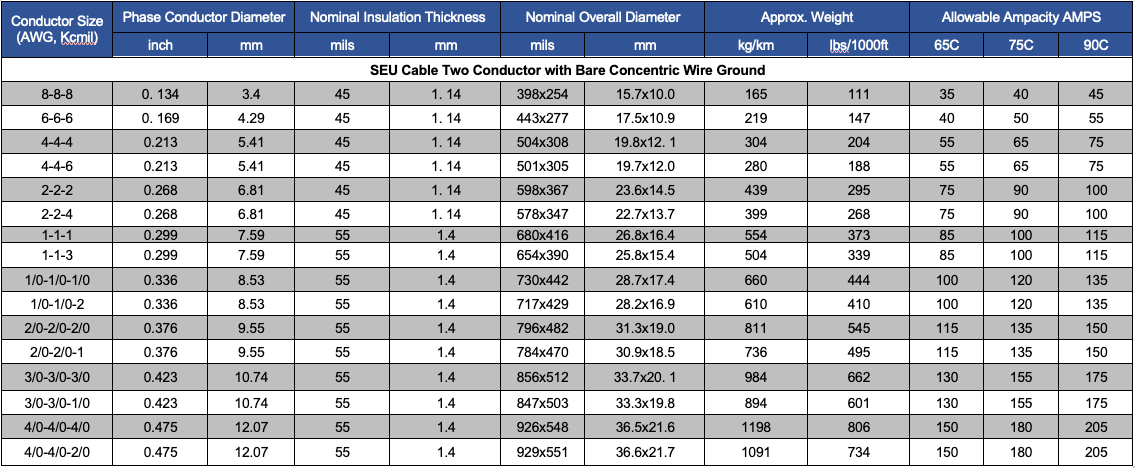

Technical data sheet –Aluminum Service Entrance Cable 600V Style U :

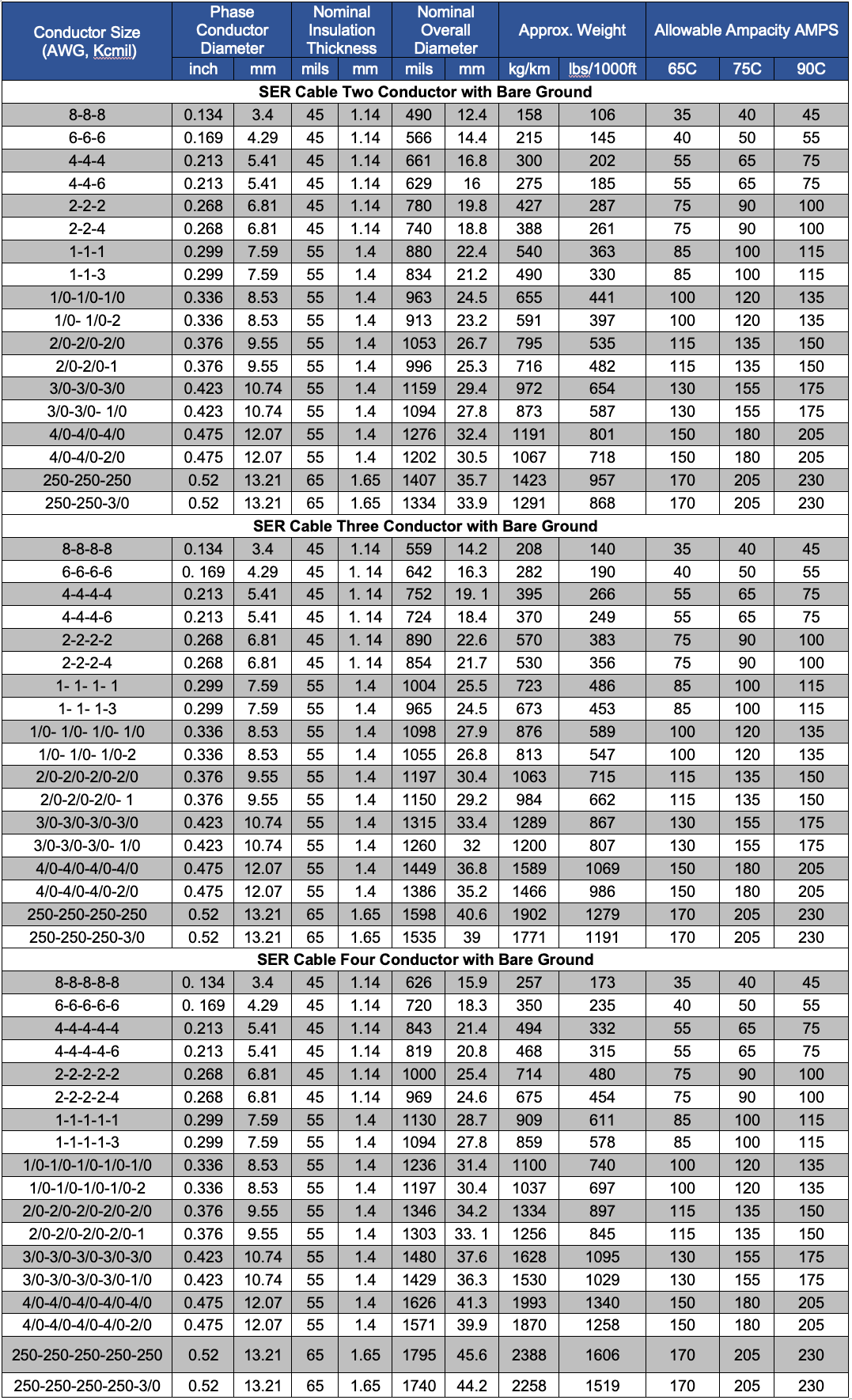

Technical data sheet –Aluminum Service Entrance Cable 600V Style R :
