MV-90/MV-105 URD Cable
Underground Residential Distribution Cable, 5-35 KV; TR –XLPE Insulation, Neutral Concentric wire, LLDPE Jack, Single Conductor, Copper or Aluminum
Standard :
• UL1072 Medium-Voltage Power Cables.
• ICEA S-94-649 Concentric Neutral Cables Rated 5 –
• AEIC CS8 Specification for Extruded Dielectric, Shielded Power Cables Rated 5 through 46
• CSA 5 – Primary shielded and concentric neutral cable for distribution utilities.
• Voltage：Rated voltage (U): 5~46 kV.
Category :
Wires & Cables
Tags :
Aluminum, Copper, LLDPE Jacket, Neutral Concentric wire, Single Conductor, TR-XLPE Insulation
Application :
• 5-46 kV URD Cable (MV-90/MV-105)Underground Residential Distribution Cables are intended for use in dry or wet locations for distribution of single or three phase medium voltage power.
• Suited for use in wet and dry areas, conduits, ducts, troughs, trays, direct burial, sunlight, and where superior electrical properties are desired.
• These cables are capable of operating continuously at the conductor temperature not in excess of 90°C for normal operation.
• 130°C for emergency overload, and 250°C for short circuit conditions.
Structure :
• Conductor : Solid or Class B compressed concentric lay stranded 1350 aluminum or Copper conductors, Conductor moisture block (optional).
• Conductor screen : Semi conductive extruded
• Insulation : Tree-Retardant Cross-linked Polyethylene (TR-XLPE).
• Insulation screen : Semi conductive extruded layer, Easy
• Neutral : Helically applied, annealed, solid bare copper
• Outer sheath : Sun resistant Linear Low Density Polyethylene (LLDPE) sheath, ex truded to fill spaces between neutral
Standard :
• UL1072 Medium-Voltage Power Cables.
• ICEA S-94-649 Concentric Neutral Cables Rated 5 –
• AEIC CS8 Specification for Extruded Dielectric, Shielded Power Cables Rated 5 through 46
• CSA 5 – Primary shielded and concentric neutral cable for distribution utilities.
• Voltage：Rated voltage (U): 5~46 kV.
Performance :
• Min. Bending Radius during Installation :20xD
• Min. Bending Radius Fix installed :15Xd
• Sun resistance
• -40 Degree
Details
| Material : | Aluminum, Copper |
|---|---|
| Voltage : | 46 KV |
| Working Temprature : | -40ºC Min , 105ºC Max |
| Tags : | Aluminum, Copper, LLDPE Jacket, Neutral Concentric wire, Single Conductor, TR-XLPE Insulation |
Specification

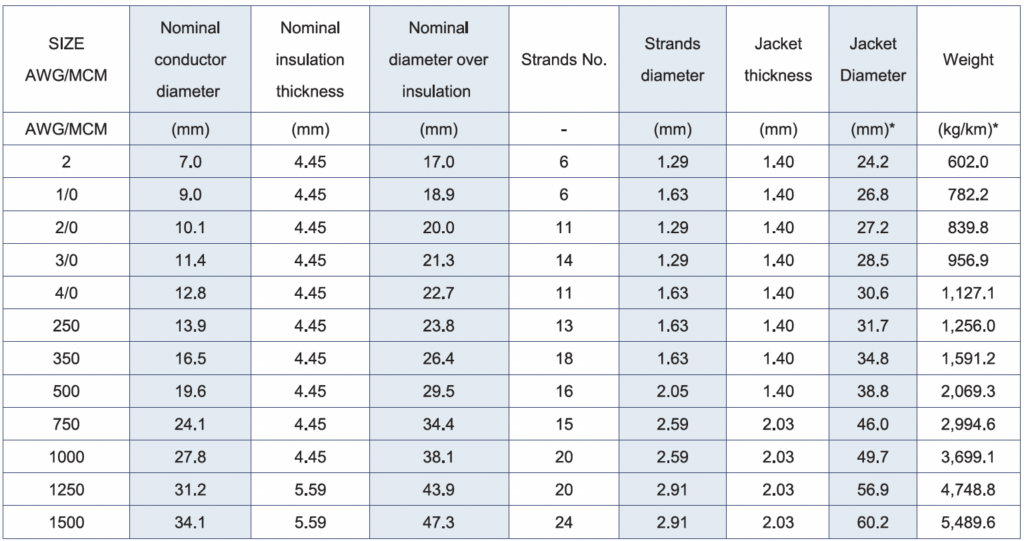

URD Power Cable-AL TR-XLPE 15 kV 100% 1/3 Concentric Neutral XLPE (International Unit System) Range and Dimension :

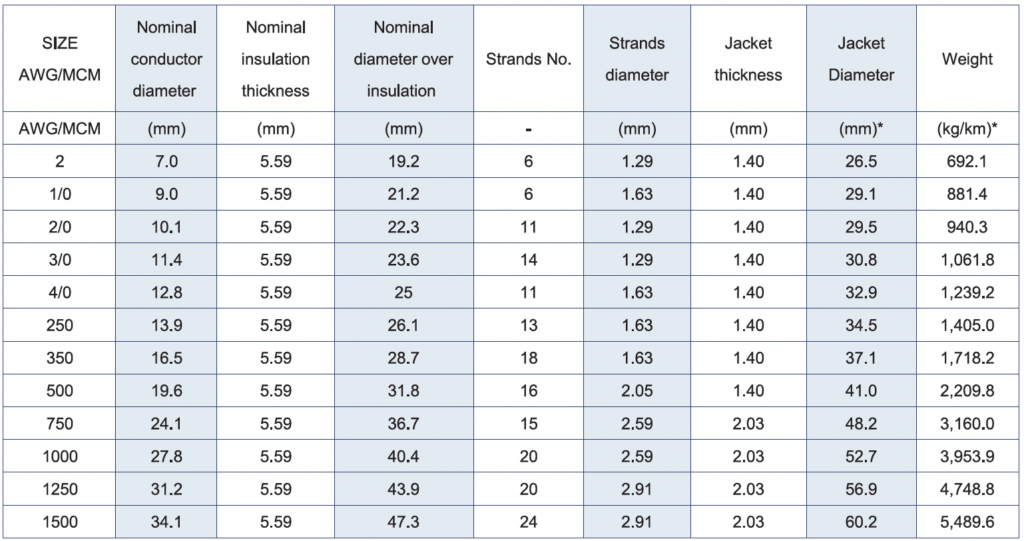

URD Power Cable-AL TR-XLPE 15 kV 133% 1/3 Concentric Neutral XLPE (International Unit System) Range and Dimension :
