Products Detail
NMWU
Non-metallic Sheathed Cable, 300V, COPPER, PVC or XLPE, PVC
Standard :
• CSA C22.2 No. 48 (non-metallic sheathed cable).
Category :
Wires & Cables
Tags :
300V, Copper, Non-metallic Sheathed Cable, PVC Jacket, PVC or XLPE Insulation
Application :
• NWMU cables may be used for underground installations, including direct burial.
• It may also be used for environments exposed to the weather in dry and wet locations.
• The maximum allowable conductor temperature is 60°C.
• The minimum recommended installation temperature is -40°C for two-conductor cables (sizes AWG 14 to AWG 6) and -25°C for all other sizes.
• Material should be properly stored above 0°C for 24 hours prior to installation.
Structure :
• Conductor: Annealed copper conductors with compressed standing for stranded conductors.
• Grounding Conductor: Annealed bare copper conductors.
• Insulation: Cross-linked Polyethylene (XLPE) or Polyvinyl chloride (PVC).
• Jacket: Polyvinyl Chloride (PVC), black.
• Conductor Colors: White and black (for 2 conductor cables); white, black and red (for 3 conductor cables).
Standard :
• CSA C22.2 No. 48 (non-metallic sheathed cable).
Performance :
• FT-1 Flame retardant.
• Sun Res (SR).
Details
| Material : | Copper |
|---|---|
| Voltage : | 300 V |
| Working Temprature : | -40ºC Min , 60ºC Max |
| Tags : | 300V, Copper, Non-metallic Sheathed Cable, PVC Jacket, PVC or XLPE Insulation |

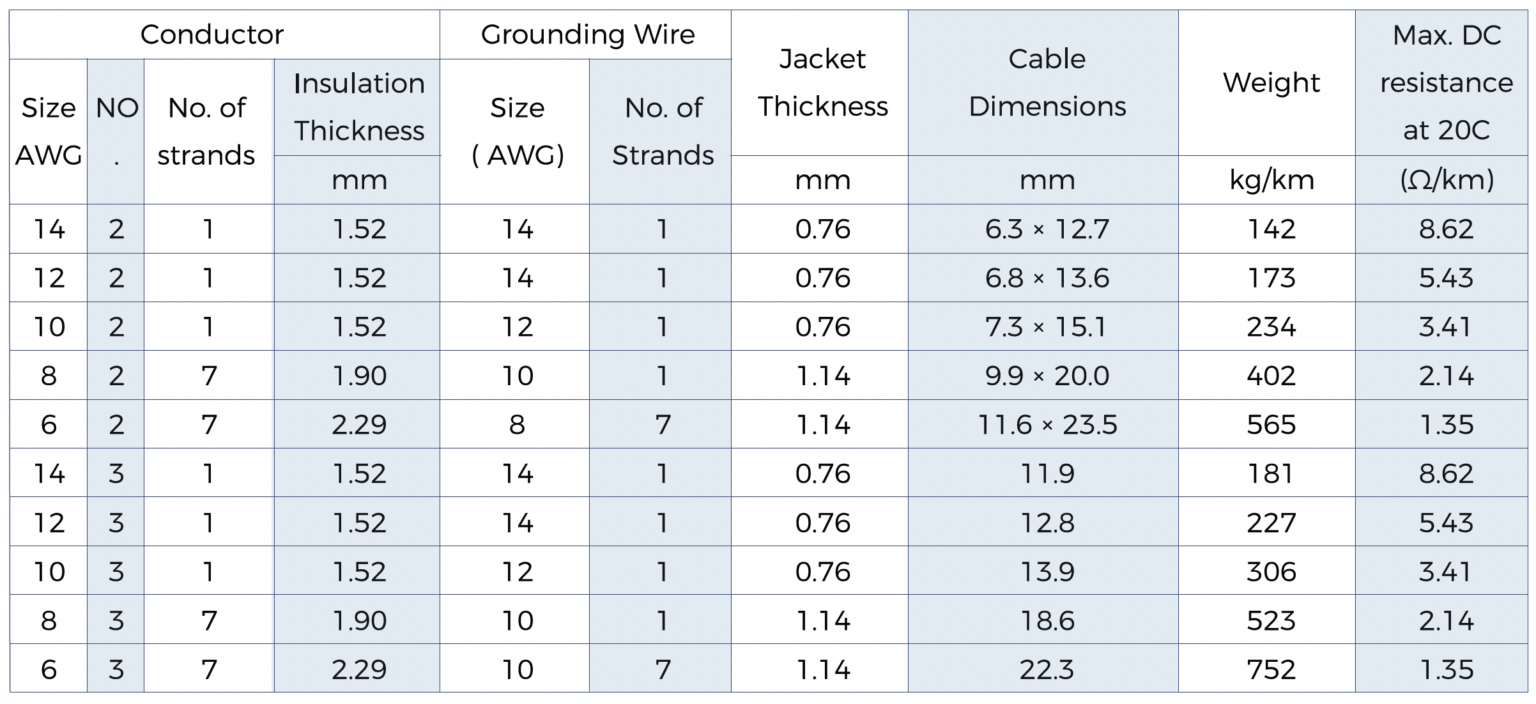

Specification
