Products Detail
2000V Type G-GC MSHA
Portable Power Cable, 2000V; EPR Insulation, CPE Jacket, Multi-conductor, Copper
Standard :
• c(UL) listed
• MSHA listed
• ICEA Standard S-75-381/NEMA WC-58, ASTM B-172 and B-33
• CSA 2, No. 96 Portable Power Cables
Category :
Wires & Cables
Tags :
2000V, Copper, CPE Jacket, EPR Insulation, Multi-conductor, Portable Power Cable
Application :
• For use in stationary, underground, or surface mining applications.
• For use with drills and pumps, and other portable power applications where equipment grounding is required.
Structure :
• Conductors ：Annealed flexible stranded tin copper
• Separator ： Tape separator between conductor and insulation
• Insulation ：Ethylene-propylene rubber (EPR) Color black/white/red
• Grounding conductors : Annealed flexible stranded tin copper, green / green / yellow EPR insulation
• Assembly : Power and ground cores cabled together to form a round core
• Filler : rubber filled binder tape over
• Jacket : Black heavy duty CPE thermosetting
Standard :
• c(UL) listed
• MSHA listed
• ICEA Standard S-75-381/NEMA WC-58, ASTM B-172 and B-33
• CSA 2, No. 96 Portable Power Cables
Performance :
• Excellent flexibility
• Highly ozone, sun, weather and flame resistant
• Oil and heat resistant
Details
| Material : | Copper |
|---|---|
| Voltage : | 2000 V |
| Working Temprature : | |
| Tags : | 2000V, Copper, CPE Jacket, EPR Insulation, Multi-conductor, Portable Power Cable |

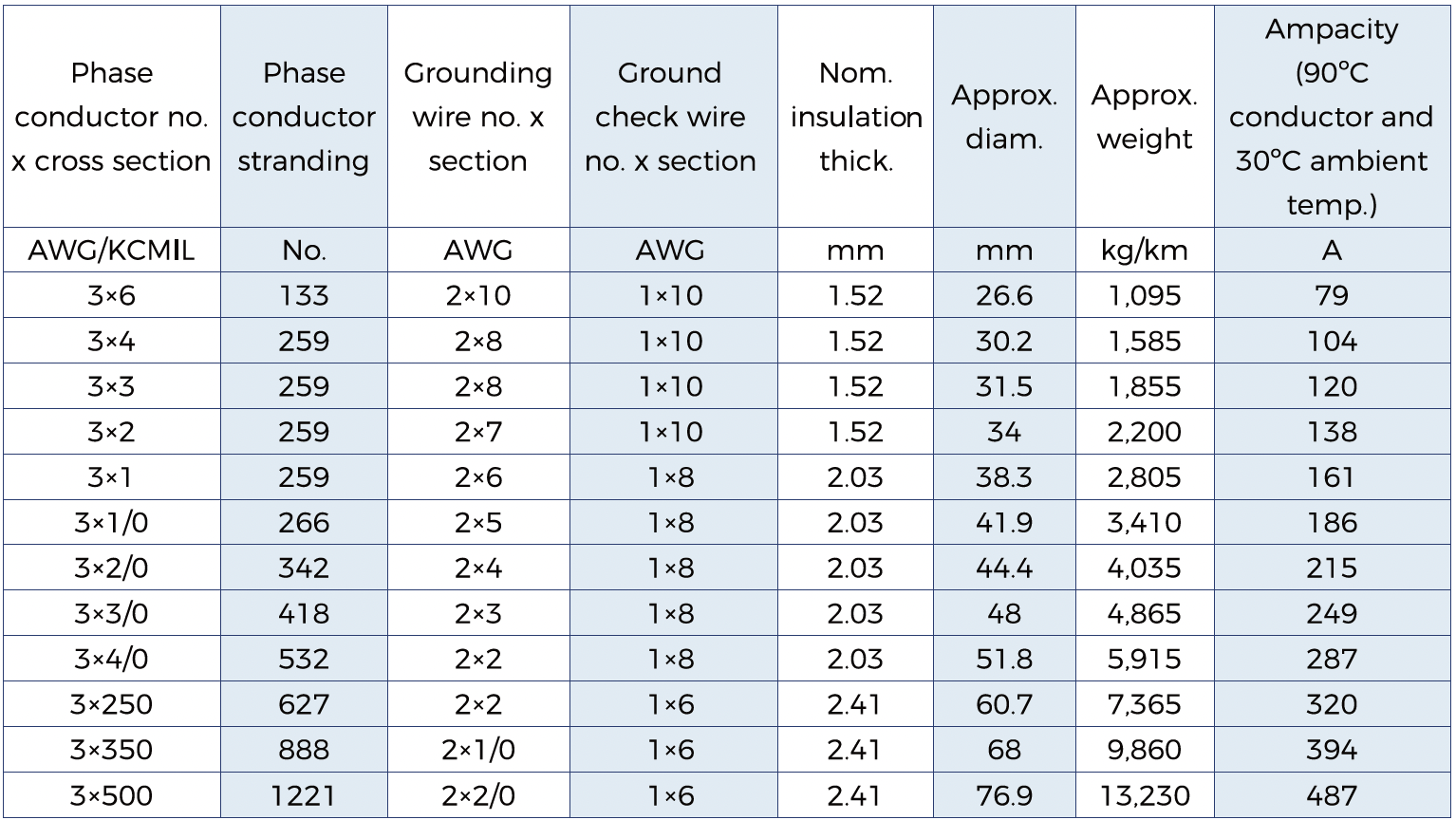

Specification
.png)
