Products Detail

2000V Type G MSHA

Portable Power Cable, 2000V; EPR Insulation, CPE Jacket, Multi-conductor, Copper

Standard :

• CSA C22. 2 No.96 Portable Power Cable

• cUL listed

• MSHA approved

Category :

Wires & Cables

Tags :

2000V, Copper, CPE Jacket, EPR Insulation, Multi-conductor

Application :

• Type G cable is a heavy-duty industrial cable for use in flexible, portable, and extra-hard usage applications.

• Highly flexible and easy to work with in cold conditions. cUL Listed.

Structure :

Conductors : Annealed flexible stranded tin copper.

Separator : Tape separator between conductor and insulation.

Insulation :Ethylene-propylene rubber (EPR).

Grounding conductors : Four cores in annealed flexible stranded copper, EPR insulated.

Assembly : Power and ground cores cabled together to form a round core.

Filler : As needed to round the cable core.

Jacket : Black, Chlorinated Polyethylene (CPE).

Standard :

• CSA C22. 2 No.96 Portable Power Cable

• cUL listed

• MSHA approved

Performance :

• Excellent flexibility.

• Highly ozone, sun, weather and flame resistant.

• Oil and heat resistant.

Details

Material : Copper
Voltage : 2000 V
Working Temprature :
Tags : 2000V, Copper, CPE Jacket, EPR Insulation, Multi-conductor

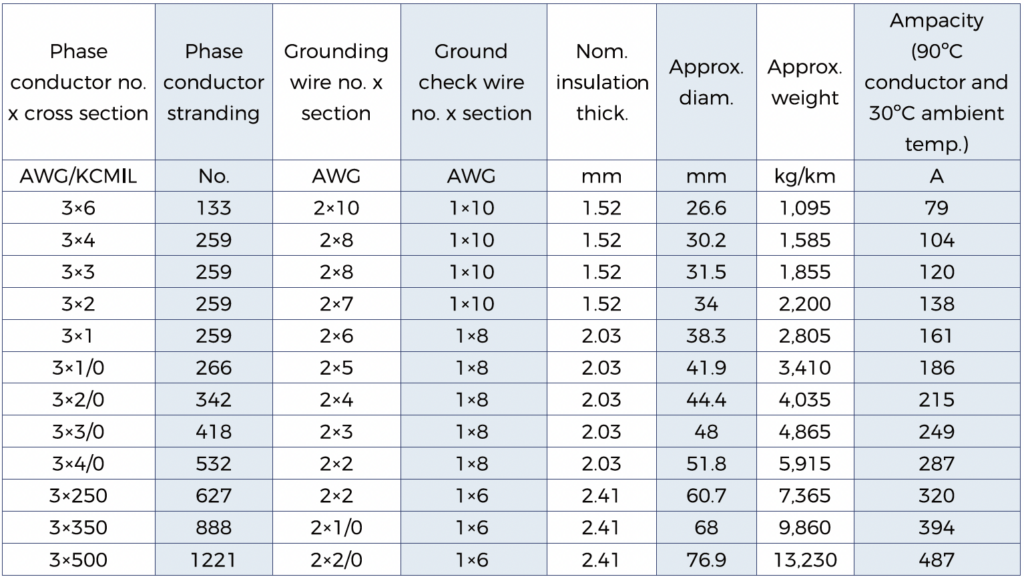

Specification

Responsive Image

* All dimensions are nominal and subject to normal manufacturing tolerances.
