Products Detail
2000V Type W MSHA
Portable Power Cable, 2000V; EPR Insulation, CPE Jacket, Multi-conductor, Copper
Standard :
• c(UL) listed
• MSHA listed
• ICEA Standard S-75-381/NEMA WC-58, ASTM B-172 and B-33
• CSA 2, No. 96 Portable Power Cords
Category :
Wires & Cables
Tags :
2000V, Copper, CPE Jacket, EPR Insulation, Multi-conductor
Application :
• For use in all stationary, underground, or surface mining applications.
• For use with drills and pumps, and as portable power and temporary power supply cables.
Structure :
• Conductors ：Annealed flexible stranded tin copper
• Separator ：Tape separator between conductor and insulation (if necessary)
• Insulation ：Ethylene-propylene rubber (EPR)
1. core black
2. cores black/white
3. cores black/white/green
4. cores black/white/green/red
5. cores black/white/green/red/orange
• Assembly ：Power and ground cores cabled together to form a round core
• Filler ：rubber filled binder tape over
• Jacket ：Black heavy duty CPE thermosetting
Standard :
• c(UL) listed
• MSHA listed
• ICEA Standard S-75-381/NEMA WC-58, ASTM B-172 and B-33
• CSA 2, No. 96 Portable Power Cords
Performance :
• Excellent flexibility
• Highly ozone, sun, weather and flame resistant
• Oil and heat resistant
Details
| Material : | Copper |
|---|---|
| Voltage : | 2000 V |
| Working Temprature : | |
| Tags : | 2000V, Copper, CPE Jacket, EPR Insulation, Multi-conductor |

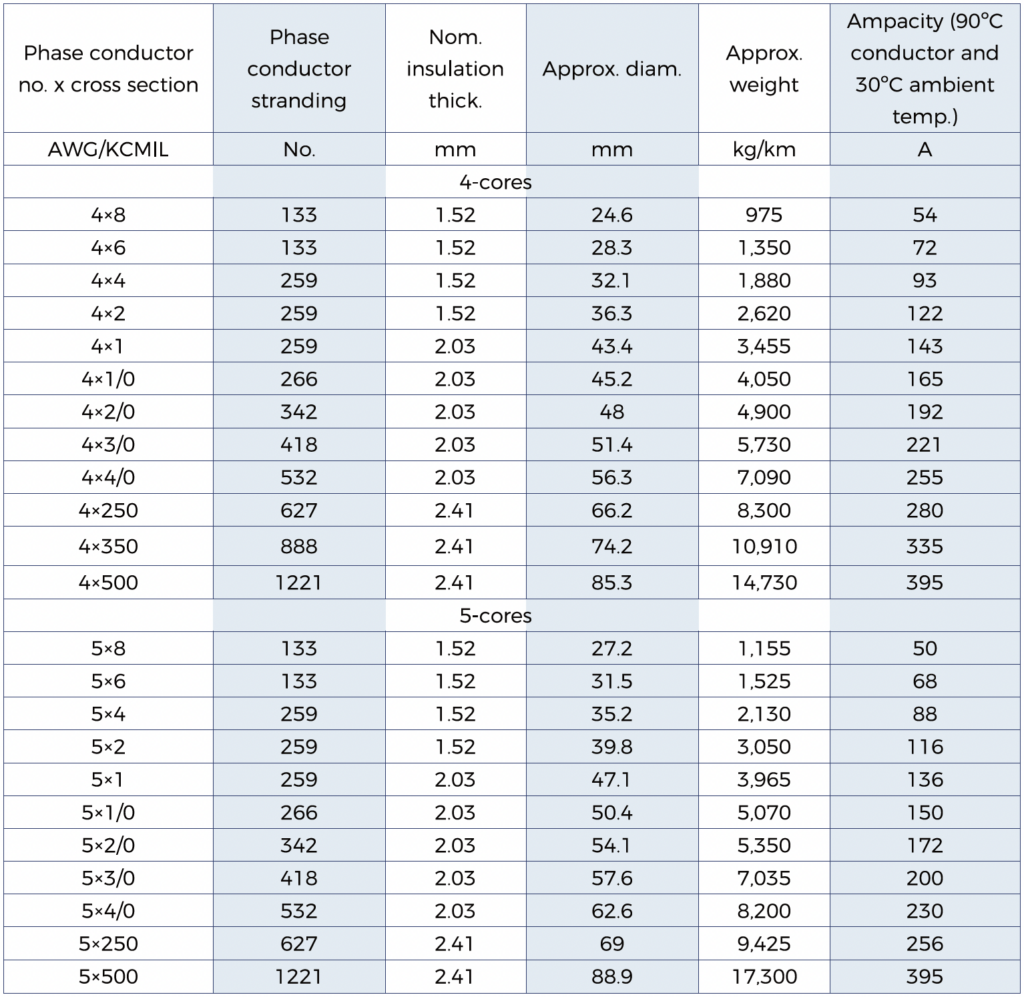

Specification
