Products Detail
CIC-TC CABLE
Low Voltage Cable, 600V; T90 NYLON Insulation, PVC Jacket, Multi-conductor, Copper
Standard :
• C22.2 No. 230 & 239
Category :
Wires & Cables
Tags :
600V, Copper, Multi-conductor, PVC Jacket, T90 Nylon
Application :
• CIC-TC Cable used for power, control, signal, communication and lighting circuits in commercial and industrial environments.
• Suitable for installation in cable trays, supported by messenger wire in open air, raceways, channels, conduits and ducts.
• Approved for direct burial and outdoors in cable trays where sunlight resistant is required.
• Also may be installed in wet or dry locations or in areas exposed to chemicals and oils.
Structure :
• Conductor : Stranded annealed bare copper. Ground Conductor(Optional): One (1) bare stranded copper conductor.
• Insulation : PVC/Nylon T90 Nylon. Optional Insulation: Cross-linked Polyethylene (XLPE) TYPE RW90.
• Shielding(Optional) : Copper Tape Shielding(CTS, Overlap @20%).
• Outer Jacket : Flame-retardant, and sunlight resistant Polyvinyl Chloride (PVC), Black.
Standard :
• C22.2 No. 230 & 239
Performance :
• Self-extinguishing and flame retardant according to CSA FT4.
• The materials used during manufacturing are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers.
• UV resistant.
• Direct burial rated.
Details
| Material : | Copper |
|---|---|
| Voltage : | 600 V |
| Working Temprature : | -25ºC Min , 90ºC Max |
| Tags : | 600V, Copper, Multi-conductor, PVC Jacket, T90 Nylon |

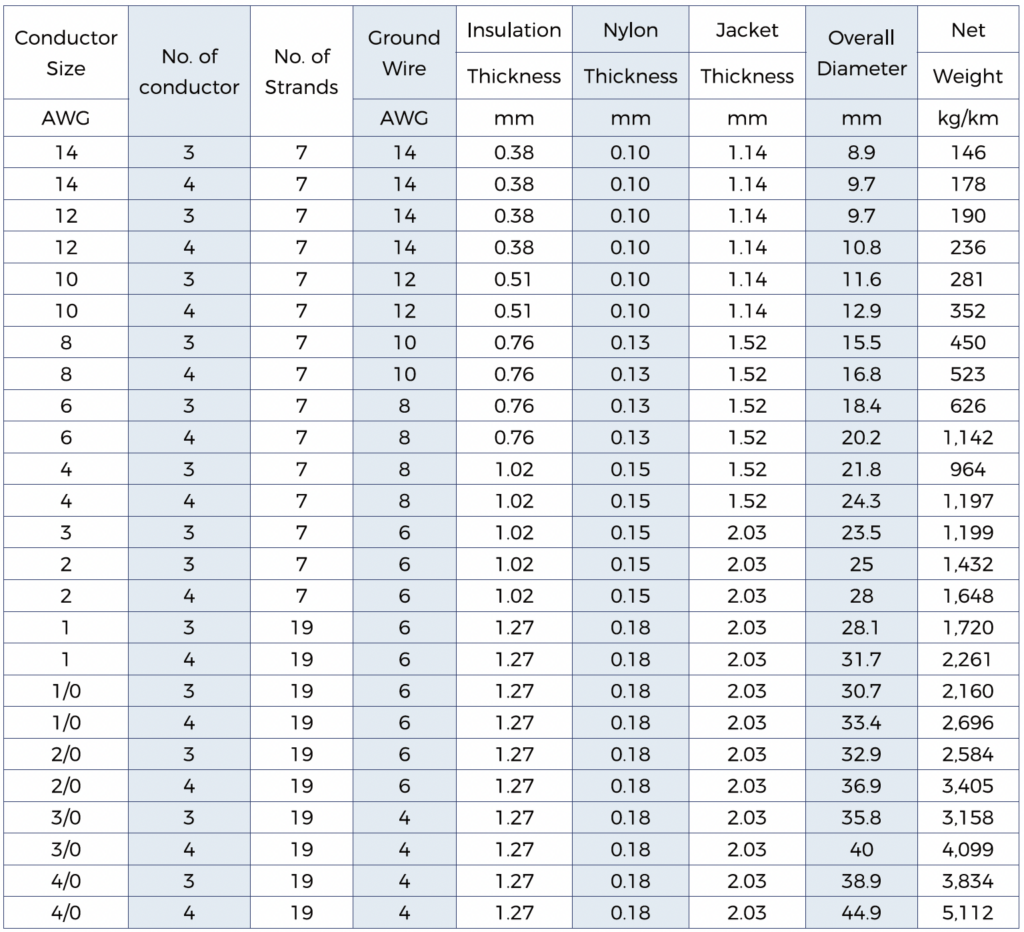

Specification
