USEI-90
Low Voltage Cable, 600V; XLPE Insulation, PVC Jacket, Copper or Aluminum
Standard :
• CSA C22.2 No. 52 Underground secondary and service-entrance cables.
• CSA 2 No. 38 Thermoset-insulated wires and cables.
Category :
Wires & Cables
Tags :
600V, Aluminum, Copper, PVC Jacket, XLPE Insulation
Application :
• USEI-90 underground distribution cable is designed to be used for secondary distribution and underground service operating at 600 volts or less.
• Cables are intended for underground installation, either direct burial or in duct systems.
Structure :
• Conductors : Compact stranded aluminum conductors class B or Compact stranded copper conductors class B.
• Insulation : Cross-linked polyethylene (XLPE) insulation, which meeting the requirements of CSA C22.2 No. 38 for Type RW90 insulation.
• Jacket : PVC outer jacket, weather resistant, sunlight resistant, cut through resistant, FT1 rated.
• Neutral Conductor : The neutral conductor may be the same size as the power conductor, or it may be reduced.
Standard :
• CSA C22.2 No. 52 Underground secondary and service-entrance cables.
• CSA 2 No. 38 Thermoset-insulated wires and cables.
Phase identification :
*Which is provided by means of jacket color coding. All cables provided with sequential printing.
• Three conductor cable consists of a red and a black colored power conductor and a white colored.
• Four conductor cable consists of a red, black, and blue colored phase conductor and a white colored.
Details
| Material : | Aluminum, Copper |
|---|---|
| Voltage : | 600 V |
| Working Temprature : | -40ºC Min , 90ºC Max |
| Tags : | 600V, Aluminum, Copper, PVC Jacket, XLPE Insulation |
Specification

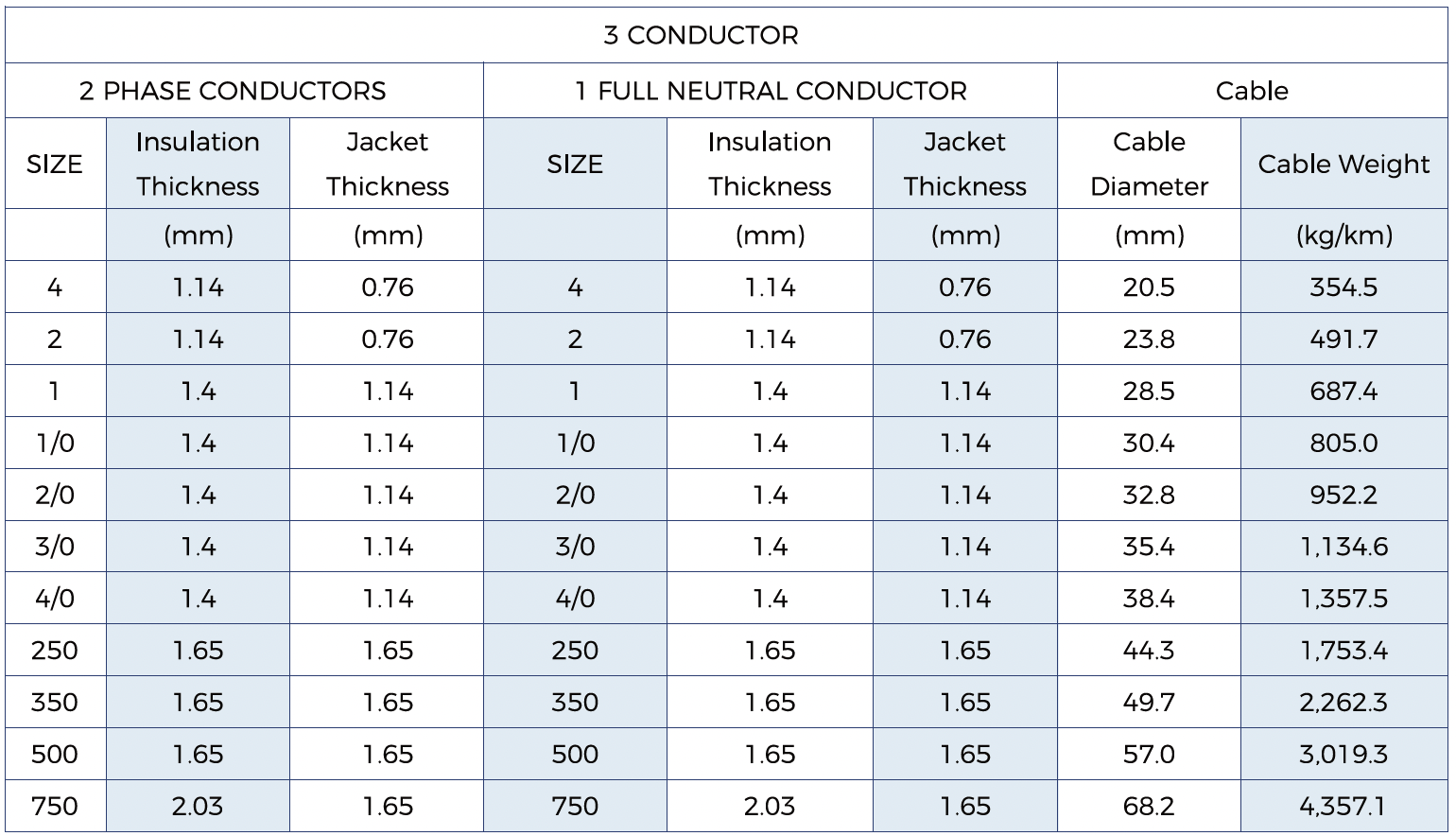

Technical data for aluminum conductor :

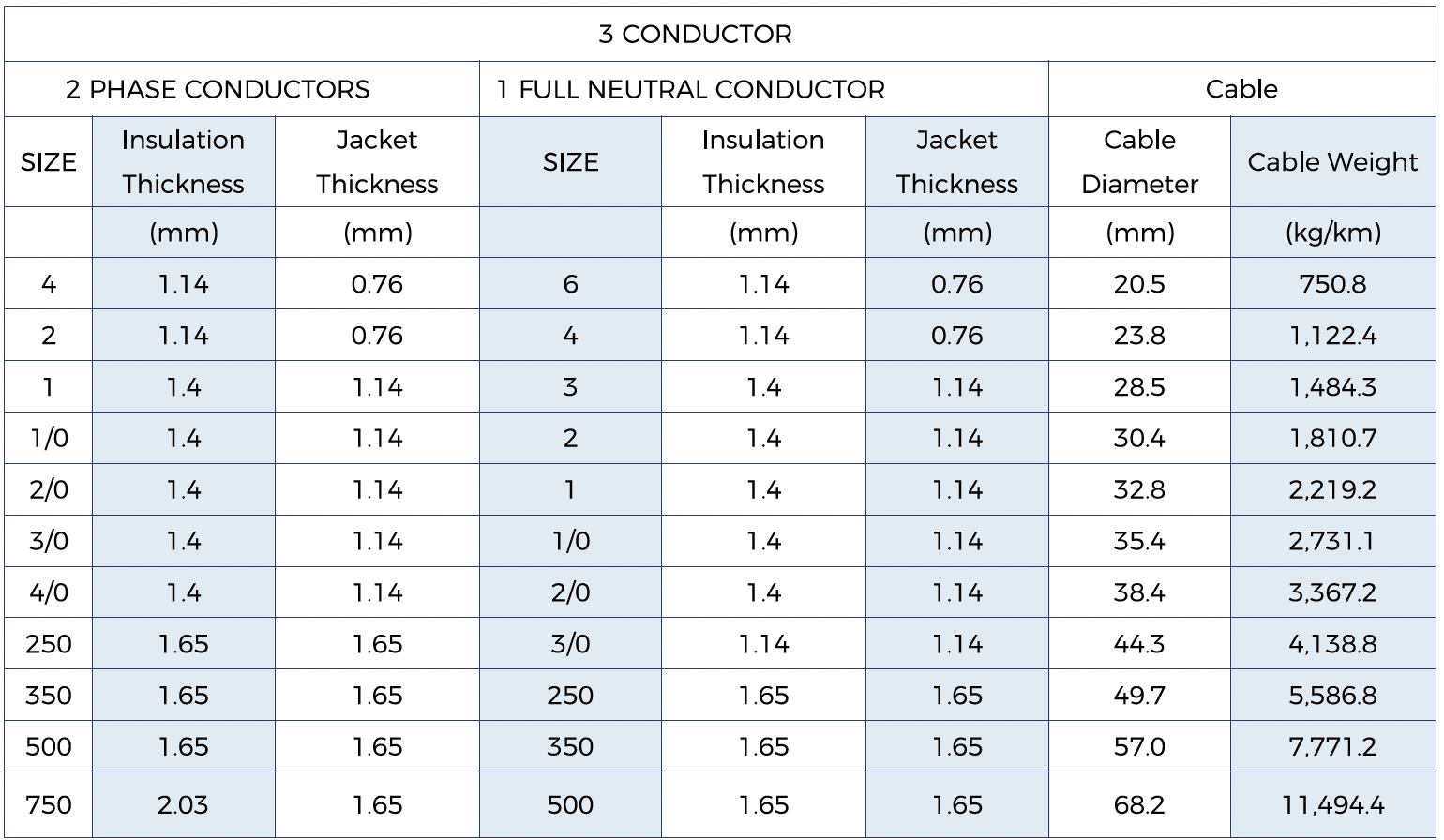

Technical data for copper conductor :
