Products Detail
SOW SOOW
Flexible Cords, 600V; EPR Insulation, CPE Jack, Multi-conductor, Copper
Standard :
• UL 62 Standard for Flexible Cords and Cables.
• CSA C22.2 No. 49 Standard for Flexible Cords and Cables.
Category :
Wires & Cables
Tags :
600V, Copper, CPE Jacket, EPR Insulation, Flexible Cords, Multi-conductor
Application :
• Type SOW SOOW Flexible Cords are permitted for use by Article 400 and related articles of the National Electrical Code.
• SOOW SOW cords are designed for extra hard usage on industrial equipment, heavy tools, battery chargers, portable lights and power extensions.
• They are sunlight, water, oil and weather resistant and suitable for outdoor applications.
Structure :
• Conductor : Fully annealed, stranded bare copper, per ASTM B-174, sizes 18 – 2AWG.
• Insulation : Ethylene-propylene rubber (EPR)
1. core black
2. cores black/white
3. cores black/white/green
4. cores black/white/green/red
5. cores black/white/green/red/orange
• Jacket : Black heavy duty CPE thermosetting compound
Standard :
• UL 62 Standard for Flexible Cords and Cables.
• CSA C22.2 No. 49 Standard for Flexible Cords and Cables.
Performance :
• Water resistant and an oil resistant jacket.
• Lightweight and good flexibility.
• FT1 and FT2 Flame Test Sunlight Resistant.
Other Rubber Cable Optional : Type S, SO ,SOO ,SV, SVO, SVOO
Details
| Material : | Copper |
|---|---|
| Voltage : | 600 V |
| Working Temprature : | -40ºC Min , 105ºC Max |
| Tags : | 600V, Copper, CPE Jacket, EPR Insulation, Flexible Cords, Multi-conductor |

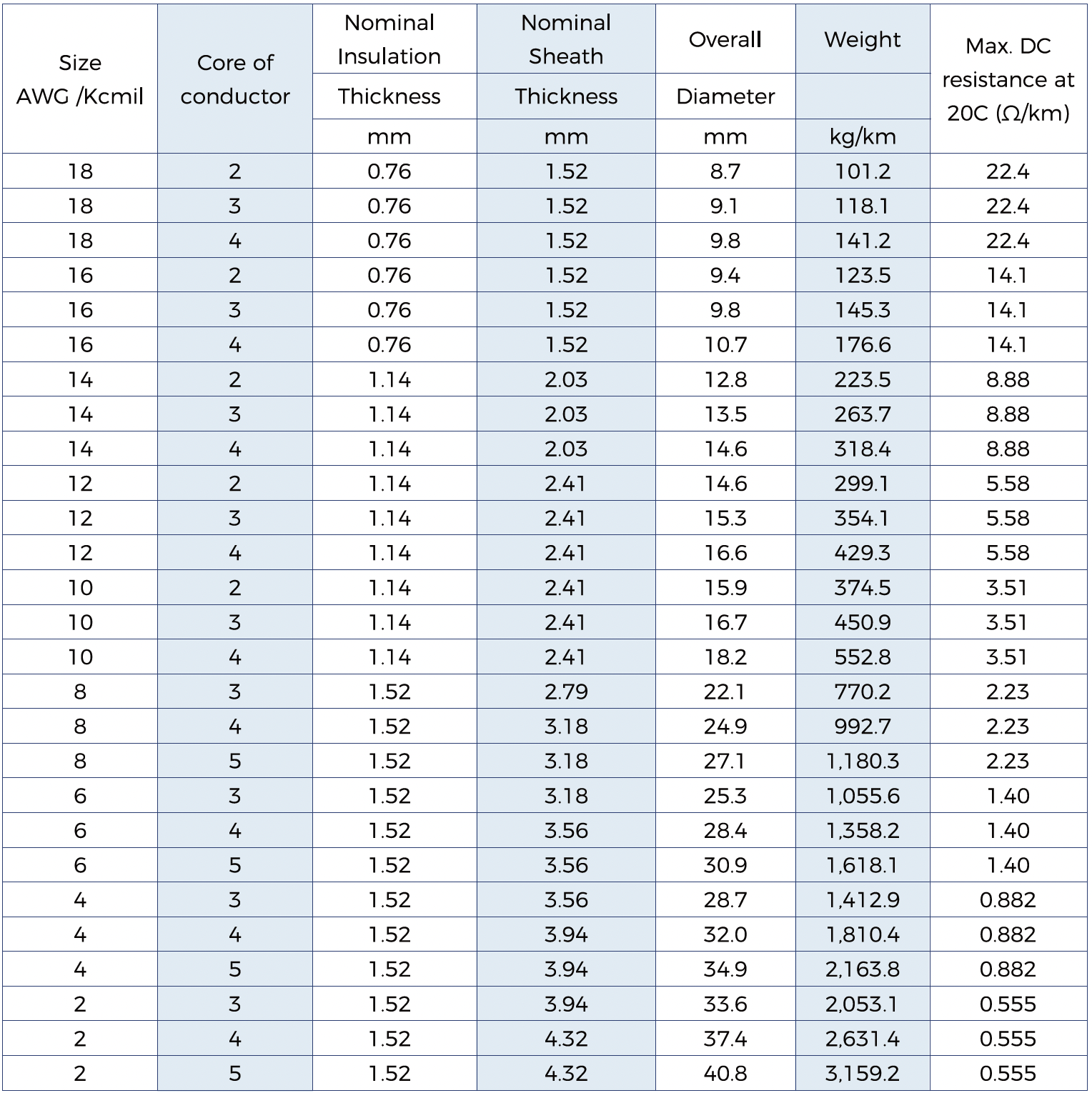

Specification
