Products Detail
SJOW SJOOW
Flexible Cords 300V; EPR Insulation, CPE Jack, Multi-conductor, Copper
Standard :
• UL 62 & CSA C22.2 No. 49, Standard for Flexible Cords and Cables
Category :
Wires & Cables
Tags :
300V, Copper, CPE Jacket, EPR Insulation, Flexible Cords, Multi-conductor
Application :
• Type SJOOW SJOW Flexible Cords are permitted for use by Article 400 and related articles of the National Electrical Code.
• Type SJOW SJOOW Cords include wiring for portable tools, portable appliances, equipment, small motors and associated machinery.
Structure :
• Conductor : Fully annealed, stranded bare copper, per ASTM B-174, sizes 18 – 2AWG.
• Insulation : Ethylene-propylene rubber (EPR)
• core black
• cores black/white
• cores black/white/green
• cores black/white/green/red
• cores black/white/green/red/orange
• Jacket : Black heavy duty CPE thermosetting compound
Standard :
• UL 62 & CSA C22.2 No. 49, Standard for Flexible Cords and Cables
Performance :
• Water resistant and an oil resistant jacket.
• Lightweight and good flexibility.
• FT1 and FT2 Flame Test.
Details
| Material : | Copper |
|---|---|
| Voltage : | 300 V |
| Working Temprature : | -40ºC Min , 105ºC Max |
| Tags : | 300V, Copper, CPE Jacket, EPR Insulation, Flexible Cords, Multi-conductor |

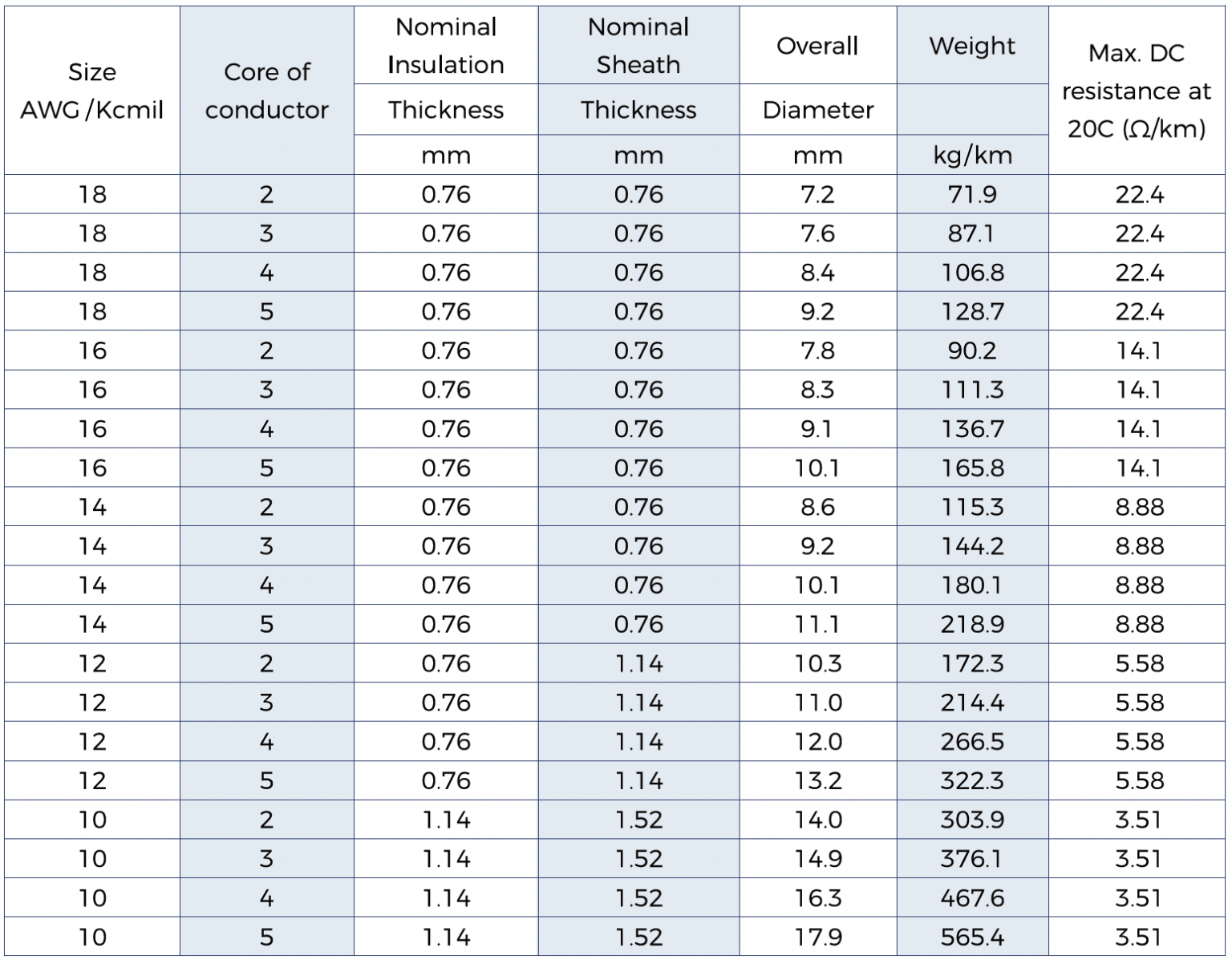

Specification
