TECK90
Metal Clad Armored Cable, 600v or 1000V; RW90 Insulation, Armored, PVC Jacket, Multi-conductor, Copper or Aluminum
Standard :
• CSA C22.2 No. 131, Type TECK90 cable.
• CSA 2 No. 38, Thermoset insulated wires and cables (Type RW90)
Category :
Wires & Cables
Tags :
1000V, 600V, Aluminum, Armored, Copper, Multi-conductor, PVC Jacket, RW90 Insulation
Application :
• For exposed or concealed wiring in wet or dry locations.
• For use in ventilated, non-ventilated and ladder type cable troughs and ventilated flexible cableway in wet or dry locations.
• Sunlight Resis- tant. Typical applications are for control.
• lighting and power circuits in: pulp and paper mills, steel mills, food processing plants, commercial centers, mines, generating stations, refineries, industrial plants and chemical plants.
Structure :
• Conductor : Annealed stranded bare copper wires, class B.
• Insulation : Cross-linked Polyethylene (XLPE) Type.
• Insulation color :
Black, White for 2 conductors
Black, Red, Blue for 3 conductors
Black, Red, Blue, white for 4 conductors.
• Bonding conductor : annealed bare copper wires,class.
• Inner Jacket : Flame-retardant and moisture resistant Polyvinyl Chloride (PVC).
• Armour : Aluminum Interlock Armour (AIA).
• Outer-jacket : Low-temperature, moisture and sunlight resistant Polyvinyl Chloride (PVC), black.
Standard :
• CSA C22.2 No. 131, Type TECK90 cable.
• CSA 2 No. 38, Thermoset insulated wires and cables (Type RW90)
Performance :
• Low-temperature, moisture and sunlight resistant FT4- Flame Test
Details
| Material : | Aluminum, Copper |
|---|---|
| Voltage : | 1000 V, 600V |
| Working Temprature : | -25ºC Min , 90ºC Max |
| Tags : | 1000V, 600V, Aluminum, Armored, Copper, Multi-conductor, PVC Jacket, RW90 Insulation |
Specification

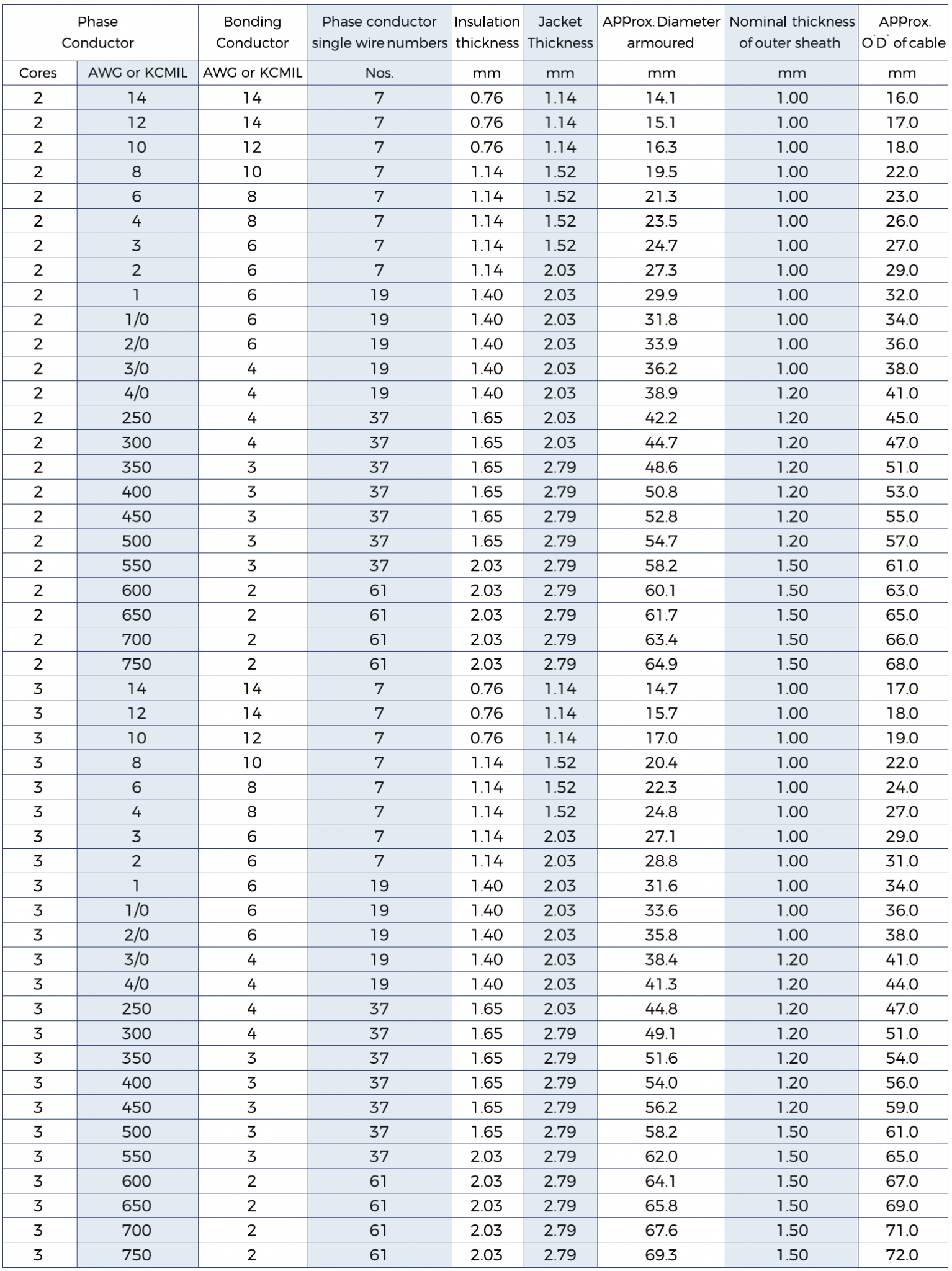

600V :

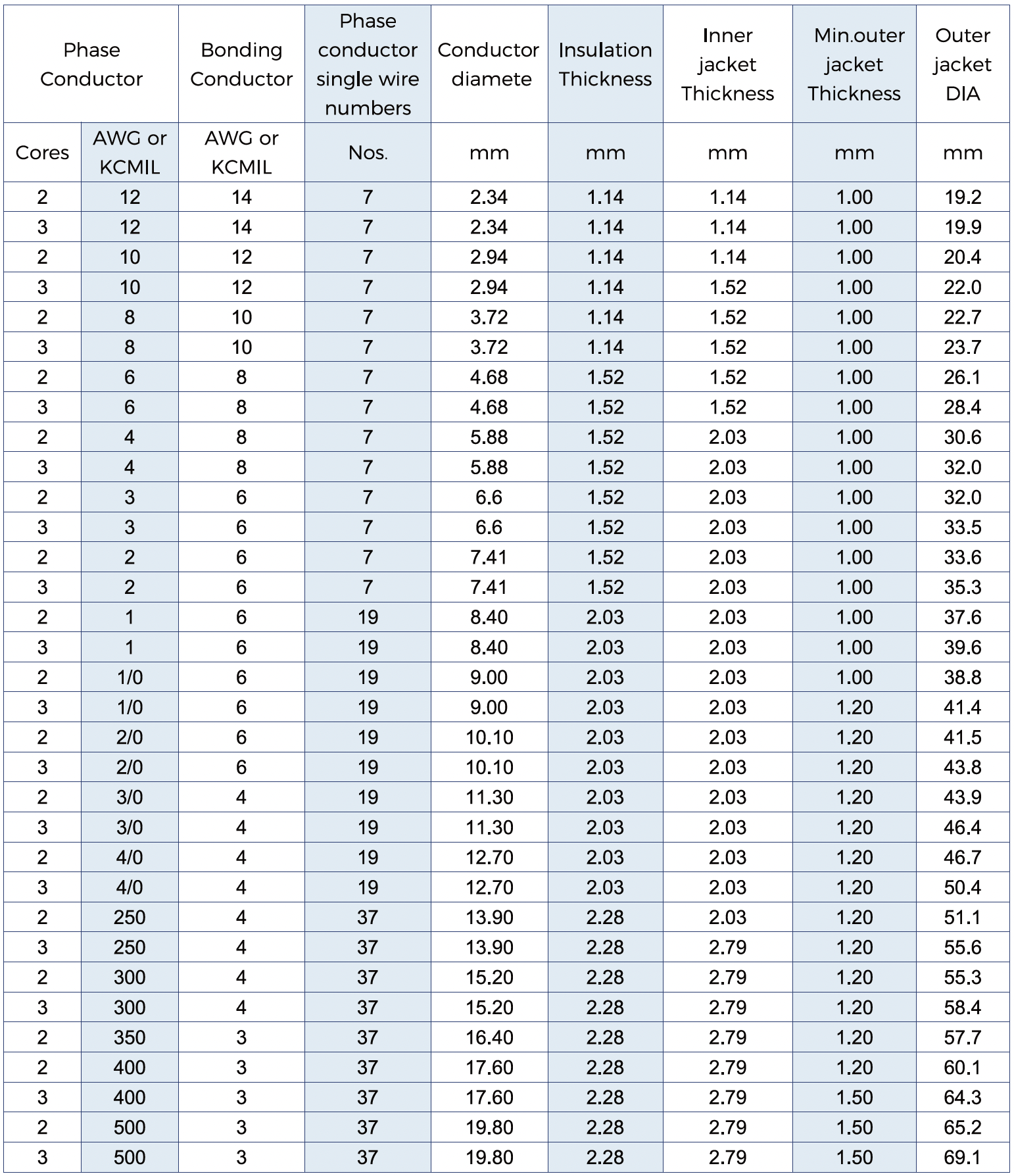

1000V :
