ACWU90
Metal Clad Armored Cable, 600V or 1000V; RW90 Insulation, Armored, PVC Jacket, Multi-conductor, Aluminum
Standard :
• CSA Standard CSA C22.2 No. 51-20（Metal-clad Cable）
Category :
Wires & Cables
Tags :
1000V, 600V, Aluminum, Armored, Multi-conductor, PVC Jacket, RW90 Insulation
Application :
• ACWU 90 cables are primarily intended for exposed and concealed wiring in dry or wet locations and where exposed to the weather.
• For use in ventilated, non-ventilated, and ladder type cable trays in wet and dry locations, direct earth burial, service entrance above or below ground.
Structure :
• Conductor : Three or four compact 8000 Series ACM aluminum conductors with bare aluminum bonding wire in multi-conductor cables.
• Insulation : Cross-linked polyethylene insulation (XLPE).
• Assemble wrap : Conductor assembly paper or PP tape wrapped.
• Armored : Interlocked aluminum armor.
• Overall Jacket : PVC jacket.
• Conductor color : Black, red and white for 3 conductor; Black, red, blue and white for 4 conductor
Standard :
• CSA Standard CSA C22.2 No. 51-20（Metal-clad Cable）
Performance :
• FT4 Flame retardant
• Sunlight Resistant
Details
| Material : | Aluminum |
|---|---|
| Voltage : | 1000 V, 600V |
| Working Temprature : | -40ºC Min , 90ºC Max |
| Tags : | 1000V, 600V, Aluminum, Armored, Multi-conductor, PVC Jacket, RW90 Insulation |

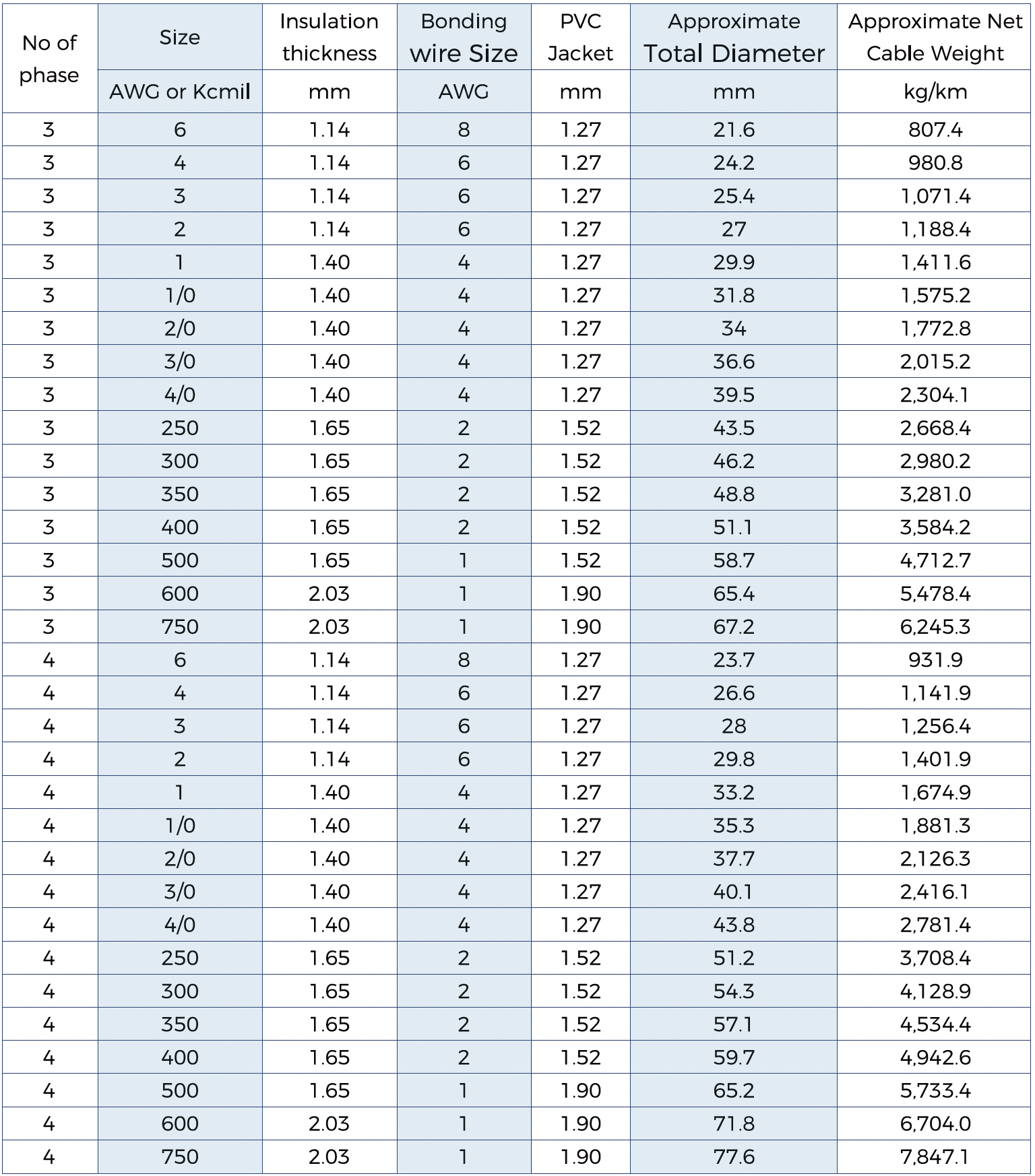

Specification
AL Conductor with bare AL aluminum tape interlocked armoured size series in 3 and 4 core: :
