Products Detail
NMD90 Copper
Non-metallic Sheathed Cable, 300V; T90 Nylon or RW90 Insulation, PVC Jacket, Aluminum, Building Wire
Standard :
• CSA C22.2 No. 48 (non-metallic sheathed cable).
Category :
Wires & Cables
Tags :
300V, Building Wire, Copper, Non-metallic Sheathed Cable, PVC Jacket, RW90 Insulation, T90 Nylon Insulation
Application :
• NMD90 cables may be used for both exposed work in dry locations or
concealed work in dry or damp locations.
• The maximum allowable conductor temperature is 90°C.
• The minimum recommended installation temperature is -25°C or -40°C for
two-conductor cables and -25°C for three-conductor cables (with suitable
handling procedures).
• Material should be properly stored above 0°C for 24 hours prior to installation.
Structure :
• Conductor : Annealed copper conductors—compressed standing for stranded
conductors.
• Insulation : PVC insulation and nylon covering or Cross-linked Polyethylene
(XLPE).
• Overall Jacket : PVC, Heat and moisture-resistant, flame retardant FT1.
Standard :
• CSA C22.2 No. 48 (non-metallic sheathed cable).
Performance :
• FT-1 Flame retardant.
• Heat and moisture-resistant, SUN.
Jacket Color :
• WHITE – General Residential Wiring.
• RED – 2 Black and Red conductors.
• ORANGE – No. 10 AWG General Residential Wiring.
• YELLOW – No. 12 AWG General Residential Wiring.
• BLUE – No. 14 AWG – 2 black and white conductors.
Details
| Material : | Copper |
|---|---|
| Voltage : | 300 V |
| Working Temprature : | -40ºC Min , 90ºC Max |
| Tags : | 300V, Building Wire, Copper, Non-metallic Sheathed Cable, PVC Jacket, RW90 Insulation, T90 Nylon Insulation |

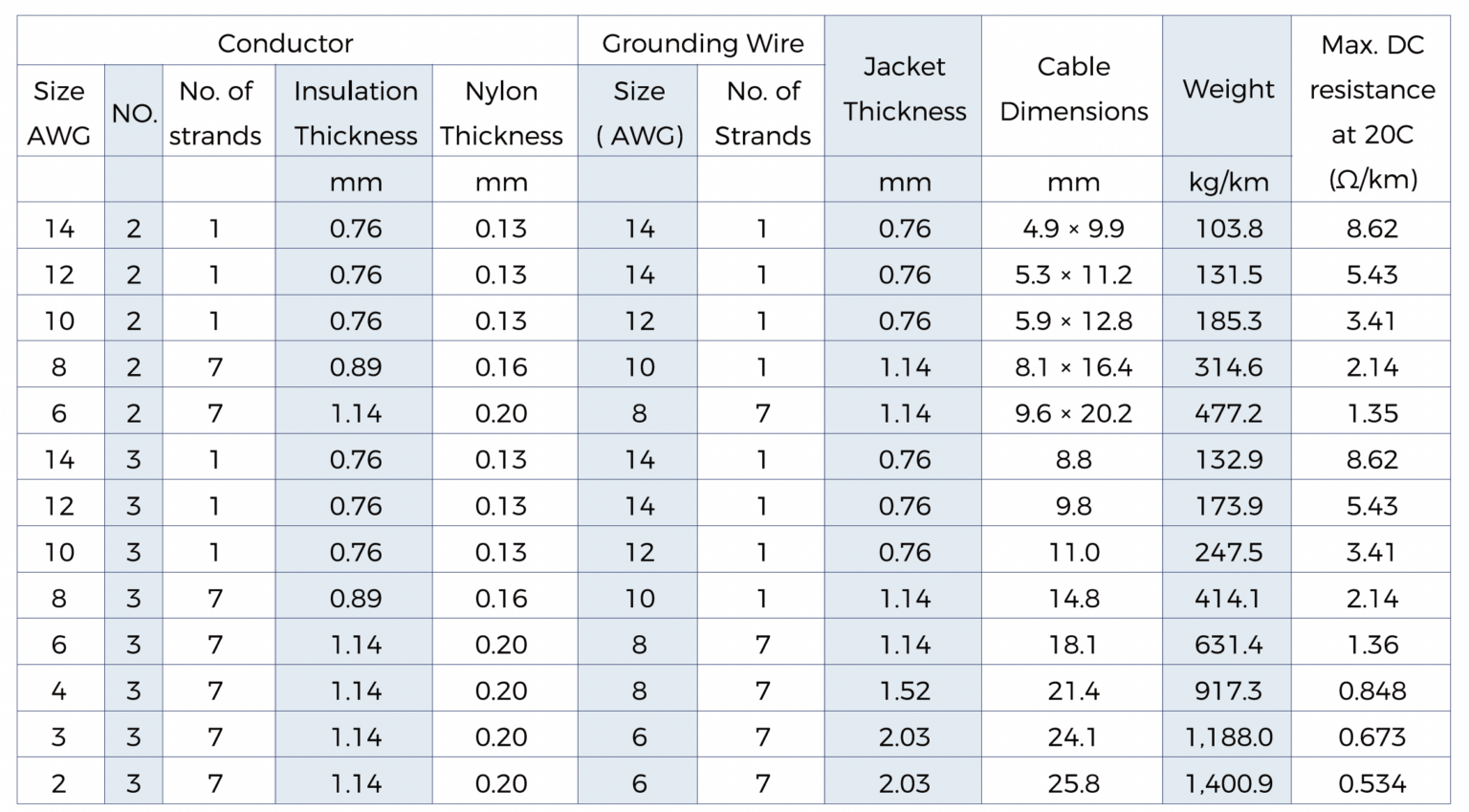

Specification
